175mm (7″) ID Pumice Liner

175mm is the 7 inch nominal size. It covers most freestanding stoves and small Class 1 gas fires where the outlet is up to 175mm.

15  Products


Which 175mm liner parts do I need?

Same rebated volcanic pumice liner as the rest of the range: lip-glue joints, LECA in the void, light to cut on site. Quantities are on the liner calculator.

Specification: 175mm (7 inch) internal diameter, 235mm outside diameter, 600mm section length, approx. 11kg per section (Isokern price list). Certified by Schiedel to EN 1857 (T600 N2 D 3 G). Suitable for all fuel types, but not for condensing appliances.

Stainless Steel Adaptor 175mm i/d

Connects the stove pipe to the liner.

View

Stainless Steel Increaser Adaptor 150-175mm i/d

For an appliance outlet of 150mm onto a 175mm liner.

View

175mm i/d Liner Support Block

Base of the liner run at the appliance connection.

View

Support Plate for 175mm and 200mm i/d

Used with the liner support block.

View

175mm i/d 600mm High Rebated Liner

The flue section; joints sealed with lip glue.

View

Lip Glue 5kg

Seals every pumice-to-pumice joint, about 2mm thick.

View

Light Expanded Clay Aggregate (50L Bag)

Insulation between the liners and the masonry, minimum 15mm.

View

15°

175mm 15°, 30° and 45° bends.What it is for: Offsets: up to two offsets (four bends), no more than 45° from vertical

View

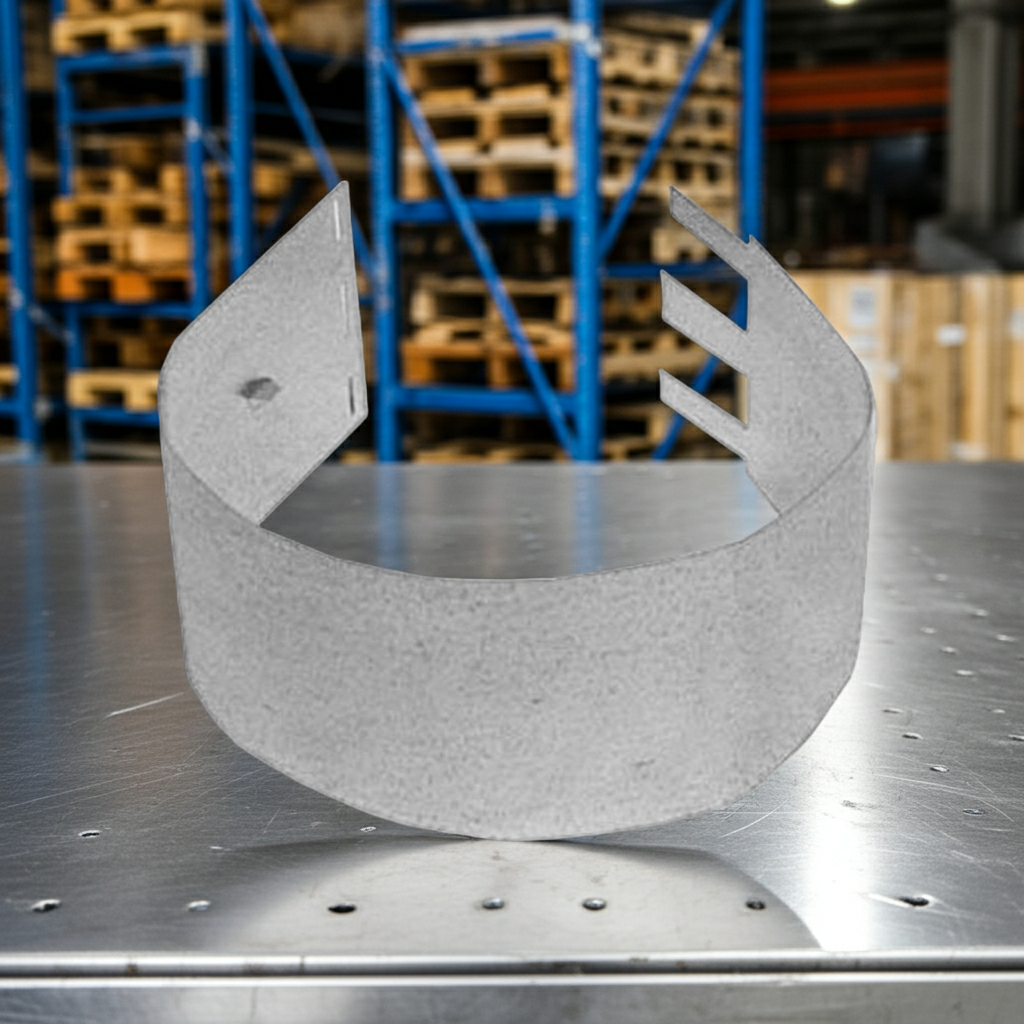

Steel Collar for 175mm i/d

Required with lip glue on any cut joint.

View

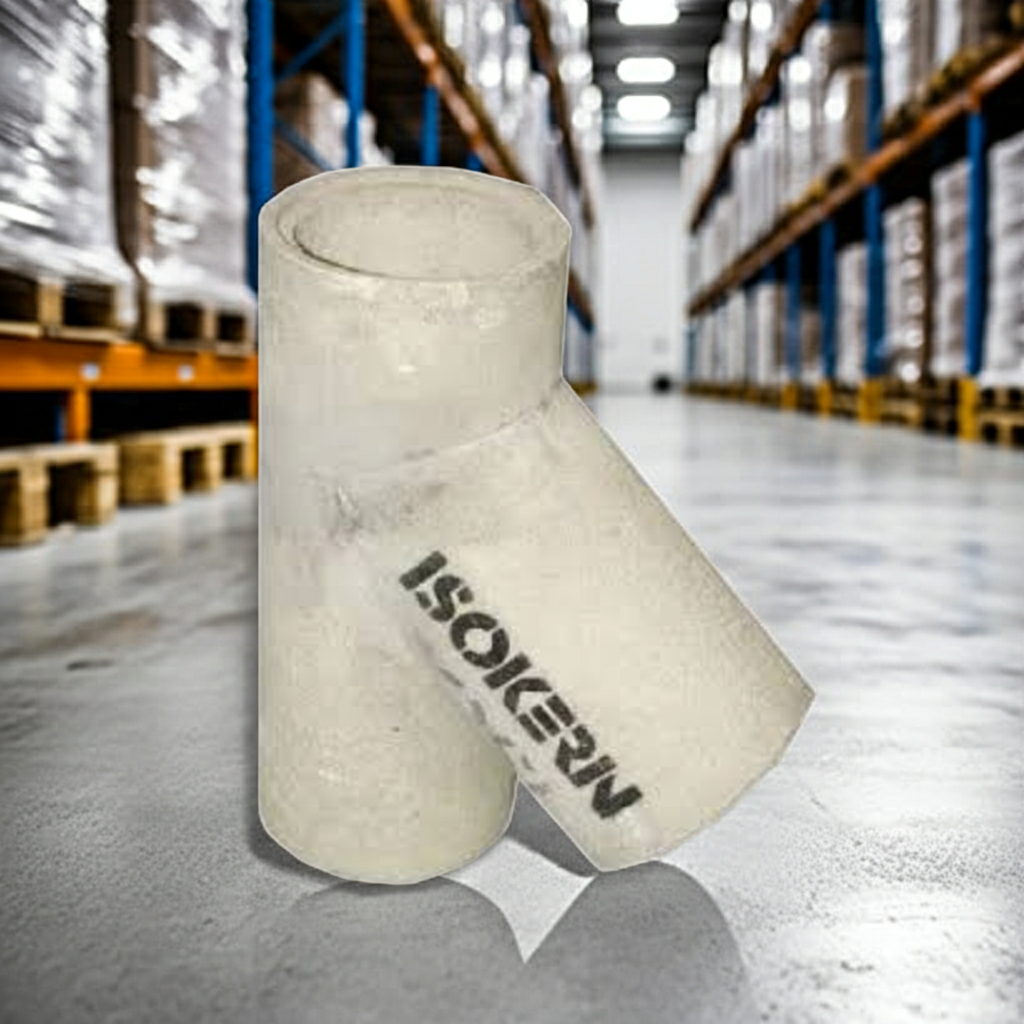

175mm i/d 45 Rebated T Liner

Rebated T section for a rear or side connection.

View

200mm i/d Rebated Access Block

Access section in the liner run.

View

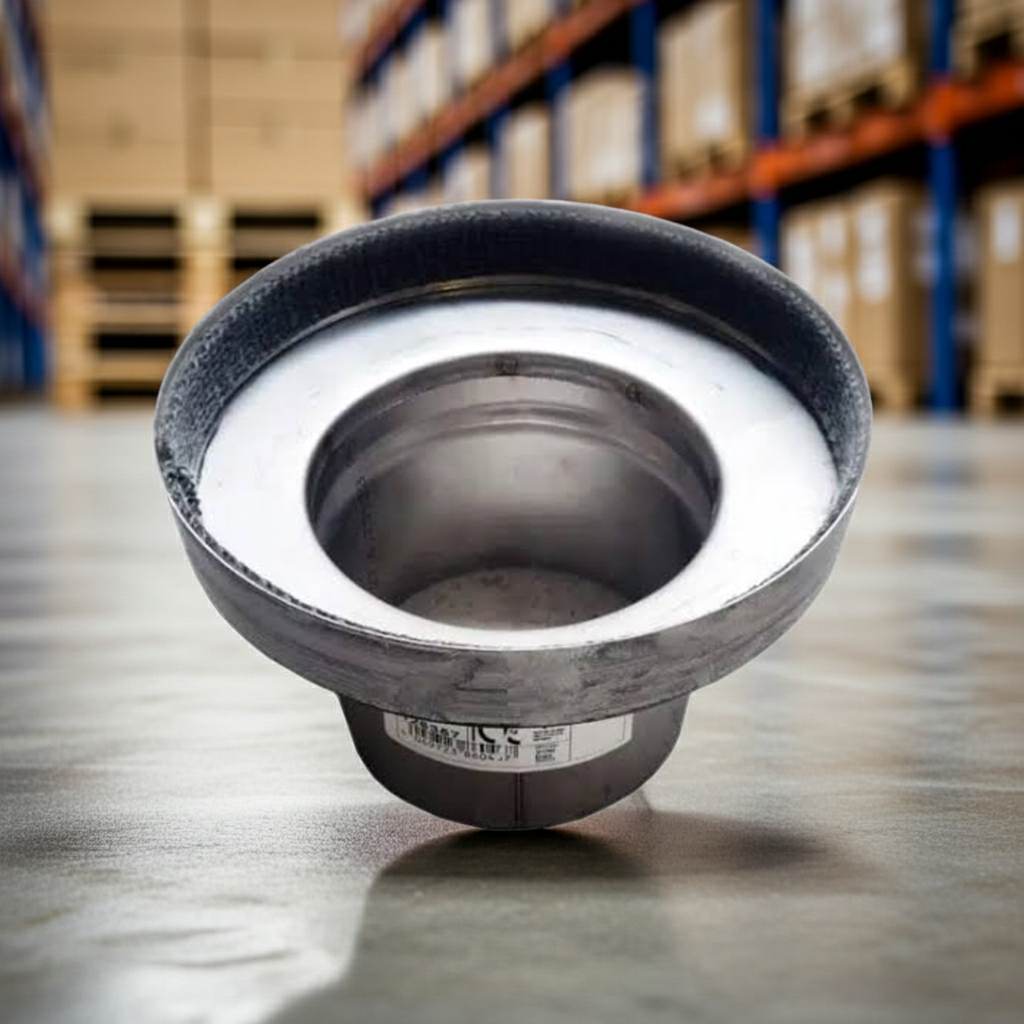

Stainless Steel T Liner Adaptor 150 - 175mm i/d

Connects a stove pipe into a T liner.

View

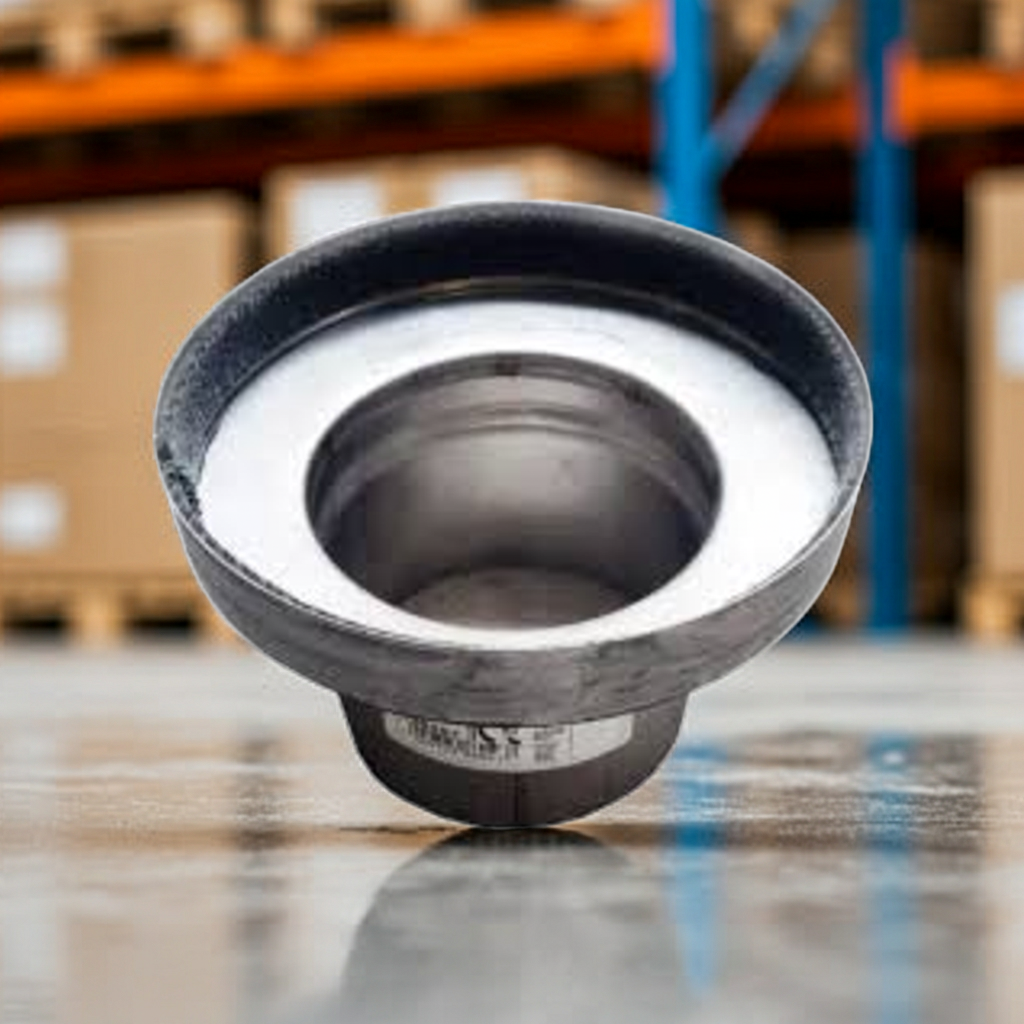

Stainless Steel T Liner Adaptor 175mm i/d

Connects a stove pipe into a T liner.

View

Installation points from Schiedel

  • Install the liners socket uppermost and seal every joint with Isokern lip glue, about 2mm thick, removing any excess.
  • Surround the liners with at least 100mm of brick, block or stone, with a minimum 15mm of LECA mixed 20:1 with OPC cement in between.
  • Support any bends and backfill them with the LECA mix.
  • Keep combustible materials 200mm from the inner surface of the liner, or 40mm from the outside of the masonry chimney.
  • Terminate the chimney at the correct height under Approved Document J, then test it and fix the chimney notice plate in the dwelling.

The flue size is set by the appliance, so always follow the stove or fire manufacturer's instructions and Approved Document J.

Building to a standard height from 4.8m to 9.0m? A 175mm liner pack brings the liners, lip glue, LECA and a chimney notice plate together, with the stove connection included.

Compare every size on the pumice flue liners page, or read how Isokern pumice flue liners work.

175mm pumice liner parts FAQs

Can I fit a 175mm liner to a stove with a 150mm outlet?

Yes. A 150mm to 175mm stainless steel increaser adaptor is listed in this range. Schiedel states the pumice flue must not be smaller than the appliance spigot.

Can a 175mm pumice flue serve a pellet, biomass or condensing appliance?

No. Schiedel states pumice is suitable only for dry chimneys, so it cannot be used with condensing appliances, including pellet and biomass.

Do I need a chimney pot?

Not necessarily. Schiedel says a pot or terminal is not essential, but it can be fitted for appearance or to help keep rain and birds out. The chimney can be finished by flaunching around the liner itself.

How is a 175mm pumice flue swept?

At least twice a year, before and after the heating season, with a 175mm medium-density polypropylene brush. Steel brushes must not be used on pumice flues.

How soon can I use the chimney?

Schiedel advises leaving it at least 72 hours, then lighting only small fires for the first week and increasing gradually.

Need help choosing your 175mm pumice liner parts?

Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.

Isokern is made by Schiedel; we are not the manufacturer.
