250mm (10″) ID Pumice Liner
250mm is the 10 inch nominal size. It suits a medium open fire, or a stove with an unusually large outlet.
Which 250mm liner parts do I need?
Rebated volcanic pumice liner. Joints are lip glue and the void is filled with LECA. The pack at this size is liners and the lining materials, not a stove starter.
Specification: 250mm (10 inch) internal diameter, 310mm outside diameter, 600mm section length, approx. 16kg per section (Isokern price list). Certified by Schiedel to EN 1857 (T600 N2 D 3 G). Suitable for all fuel types, but not for condensing appliances.
Light Expanded Clay Aggregate (50L Bag)
Insulation between the liners and the masonry, minimum 15mm.
ViewInstallation points from Schiedel
- Install the liners socket uppermost and seal every joint with Isokern lip glue, about 2mm thick, removing any excess.
- Surround the liners with at least 100mm of brick, block or stone, with a minimum 15mm of LECA mixed 20:1 with OPC cement in between.

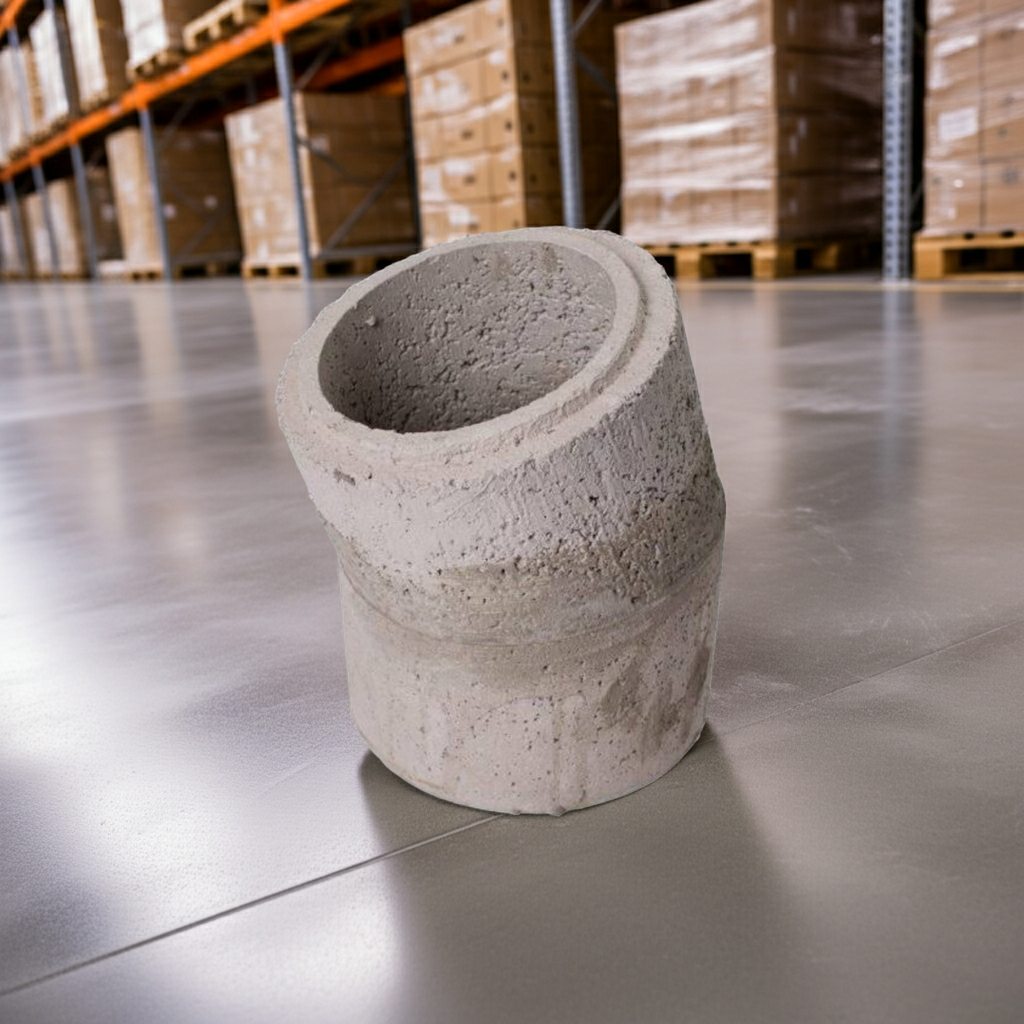

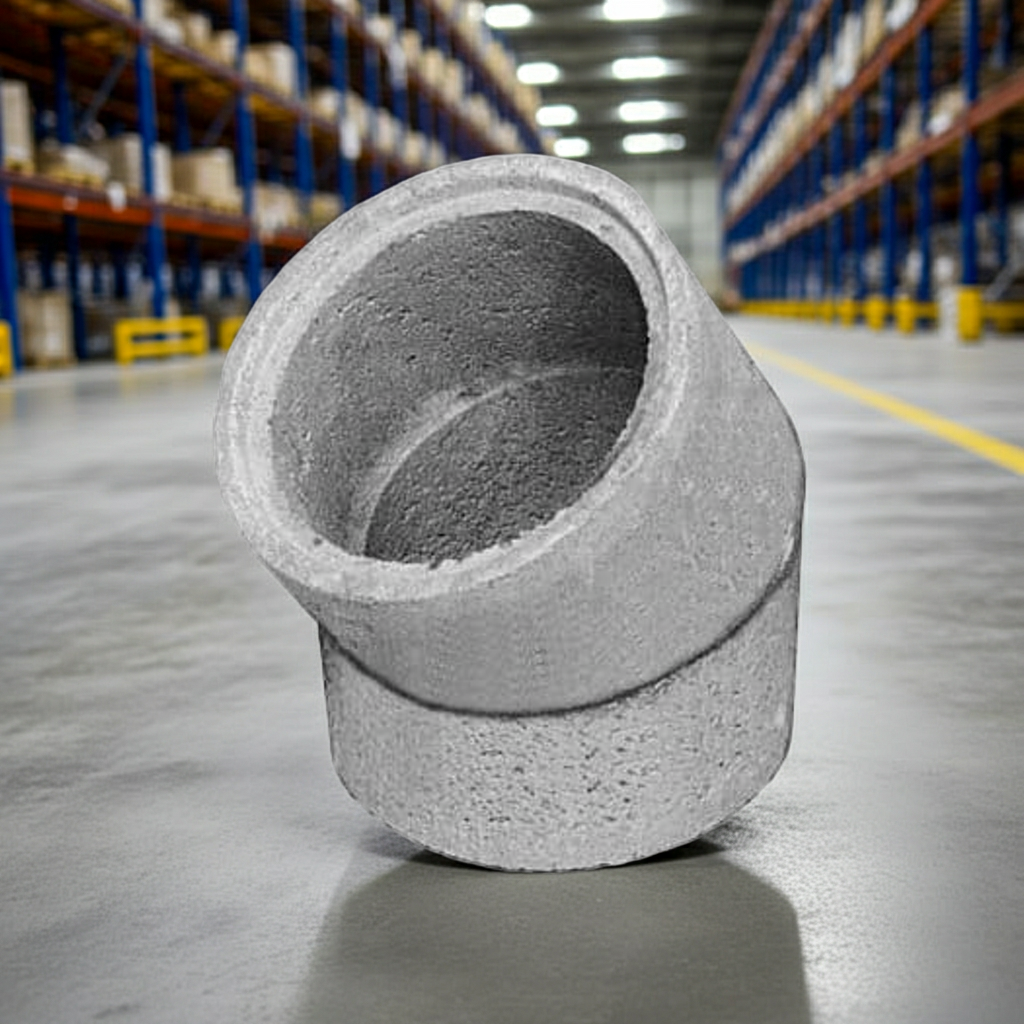

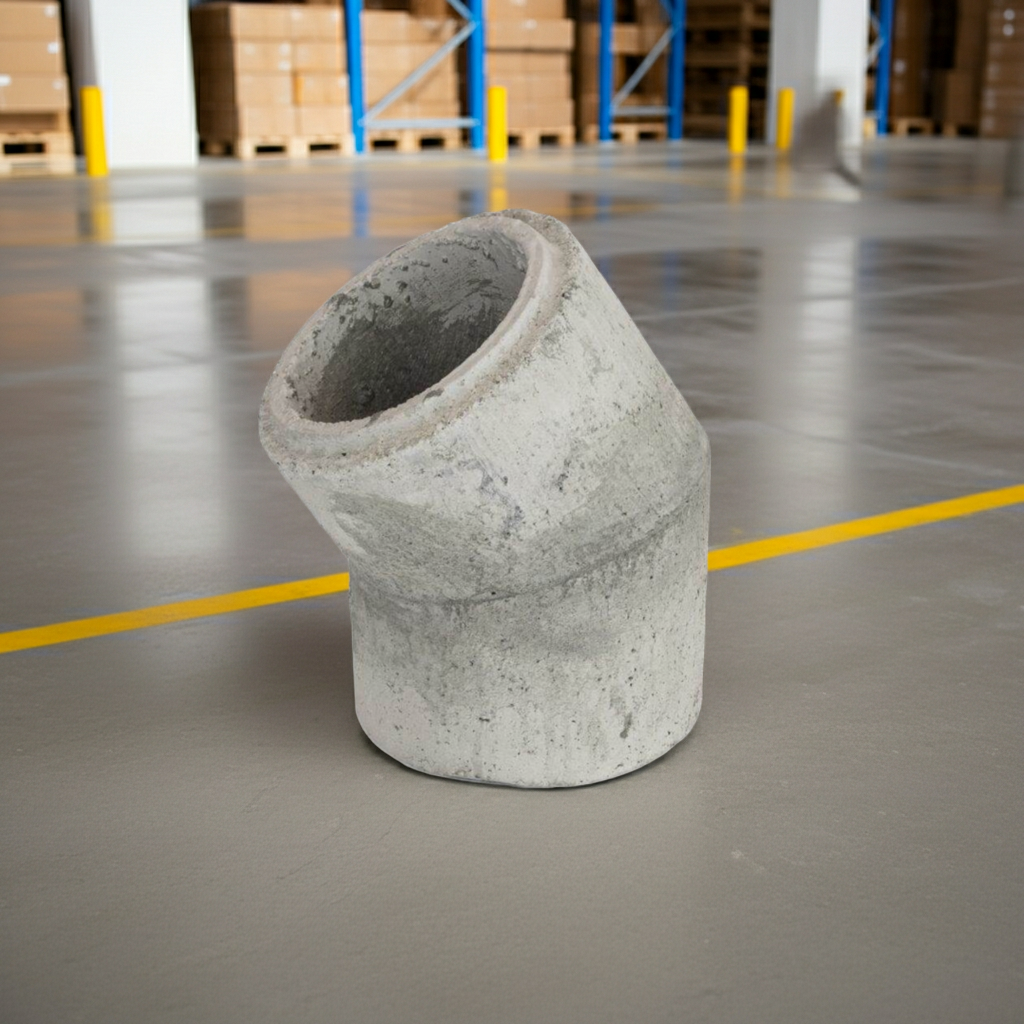

- Support any bends and backfill them with the LECA mix.
- Keep combustible materials 200mm from the inner surface of the liner, or 40mm from the outside of the masonry chimney.
- Terminate the chimney at the correct height under Approved Document J, then test it and fix the chimney notice plate in the dwelling.
The flue size is set by the appliance, so always follow the stove or fire manufacturer's instructions and Approved Document J.
Building to a standard height from 4.8m to 9.0m? A 250mm liner pack brings the liners, lip glue, LECA and a chimney notice plate together; connection parts are chosen separately.
Compare every size on the pumice flue liners page, or read how Isokern pumice flue liners work.
250mm pumice liner parts FAQs
Can I use a smaller liner than the stove outlet?
No. Schiedel states the pumice flue must not be smaller than the spigot diameter of the appliance. The flue size is set by the appliance manufacturer.
Can a 250mm pumice flue serve a pellet, biomass or condensing appliance?
No. Schiedel states pumice is suitable only for dry chimneys, so it cannot be used with condensing appliances, including pellet and biomass.
Do I need a chimney pot?
Not necessarily. Schiedel says a pot or terminal is not essential, but it can be fitted for appearance or to help keep rain and birds out. We list 250mm pots in terracotta and buff on the chimney pots page.
How is a 250mm pumice flue swept?
At least twice a year, before and after the heating season, with a 250mm medium-density polypropylene brush. Steel brushes must not be used on pumice flues.
Is there an open-fire gather for 250mm liners?
Yes, the C17 concrete gather. Schiedel gives a minimum chimney height of 4.5m from the top of the fire opening.
Need help choosing your 250mm pumice liner parts?
Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.
Isokern is made by Schiedel; we are not the manufacturer.
