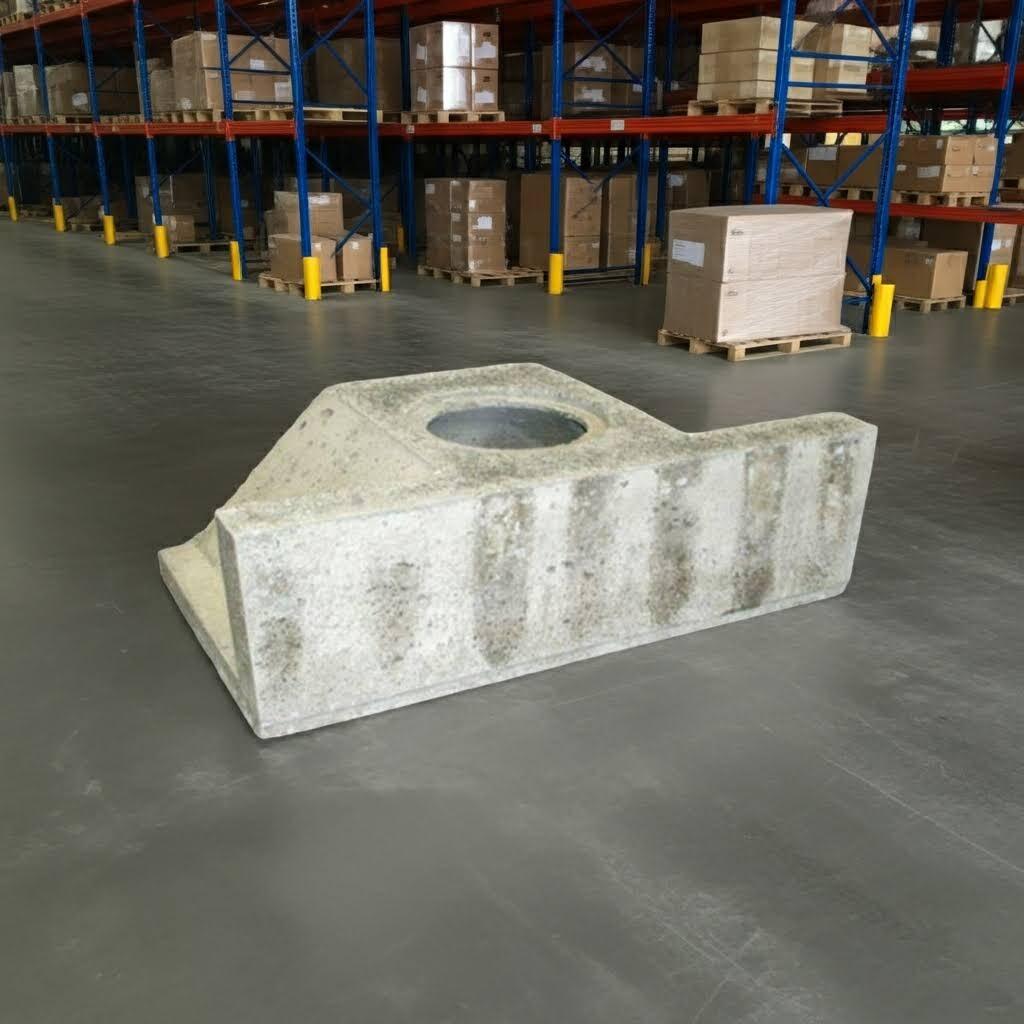

Concrete Gathers
Concrete gathers take an open-fire opening into the flue. They bed on lintels and can be widened with extra lintels.
Which concrete gather do I need?
Used on new builds and renovations where a pumice gather is not the right fit. The flue above still has to meet the Approved Document J cross-section for that opening. Choose the gather by the flue size above it:
Size the flue for the fire opening with our flue size calculator. Compare every gather type on the Gathers page.
Concrete gather dimensions and weights
| Gather | Flue (ID) | Internal width | External W × H × D | Weight | Shop |
|---|---|---|---|---|---|
| C16 | 200/225mm | 600mm | 800 × 225 × 450mm | 110kg | View |
| C17 | 250mm | 800mm | 1000 × 300 × 550mm | 130kg | View |
| C18 | 300mm | 800mm | 1000 × 300 × 550mm | 138kg | View |
Figures from the Schiedel Isokern Chimney Systems brochure.
Technical downloads
Concrete gather FAQs
Which concrete gather suits a 225mm flue?
The C16 concrete gather, which is listed for 200mm and 225mm internal diameter flues.
Can a concrete gather be made wider?
Yes. Concrete gathers bed on lintels and can be widened with extra lintels.
Pumice or concrete gather?
Pumice gathers suit chambers up to 690mm on a liner or DM44 system. Concrete gathers (C16, C17, C18) cover 200mm to 300mm flues with internal widths of 600mm or 800mm.
Need help choosing your concrete gather?
Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.
Isokern is made by Schiedel; we are not the manufacturer.
