350mm (14″) ID Pumice Liner

350mm is the 14 inch nominal size, for a large open fire. It is also the flue size used with the wider Magnum firechests.

7  Products


Which 350mm liner parts do I need?

Rebated volcanic pumice liner, lip-glued, with LECA in the void. Heavy enough to plan the lift, still far lighter than clay.

Specification: 350mm (14 inch) internal diameter, 416mm outside diameter, 600mm section length, approx. 27kg per section (Isokern price list). Certified by Schiedel to EN 1857 (T600 N2 D 3 G). Suitable for all fuel types, but not for condensing appliances.

350mm i/d 600mm High Rebated Liner

The flue section; joints sealed with lip glue.

View

Lip Glue 5kg

Seals every pumice-to-pumice joint, about 2mm thick.

View

Light Expanded Clay Aggregate (50L Bag)

Insulation between the liners and the masonry, minimum 15mm.

View

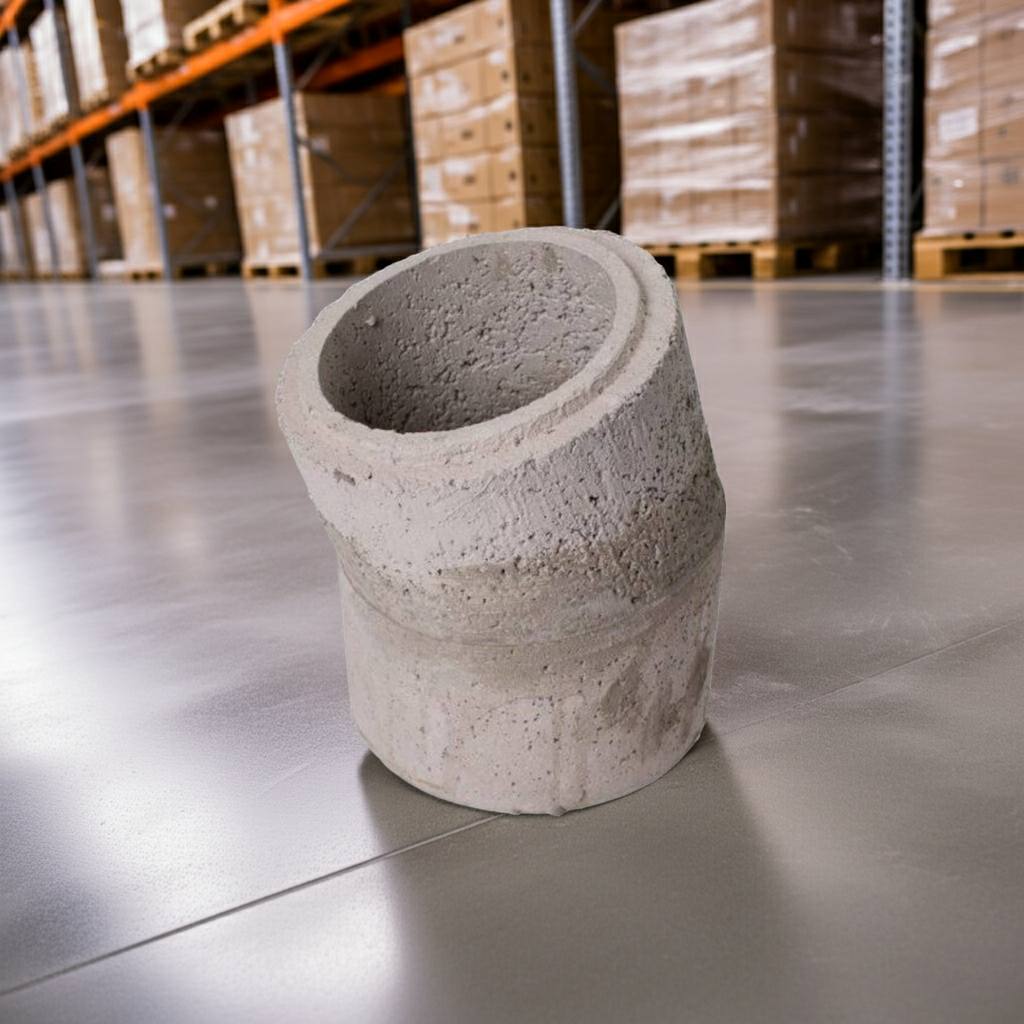

15°

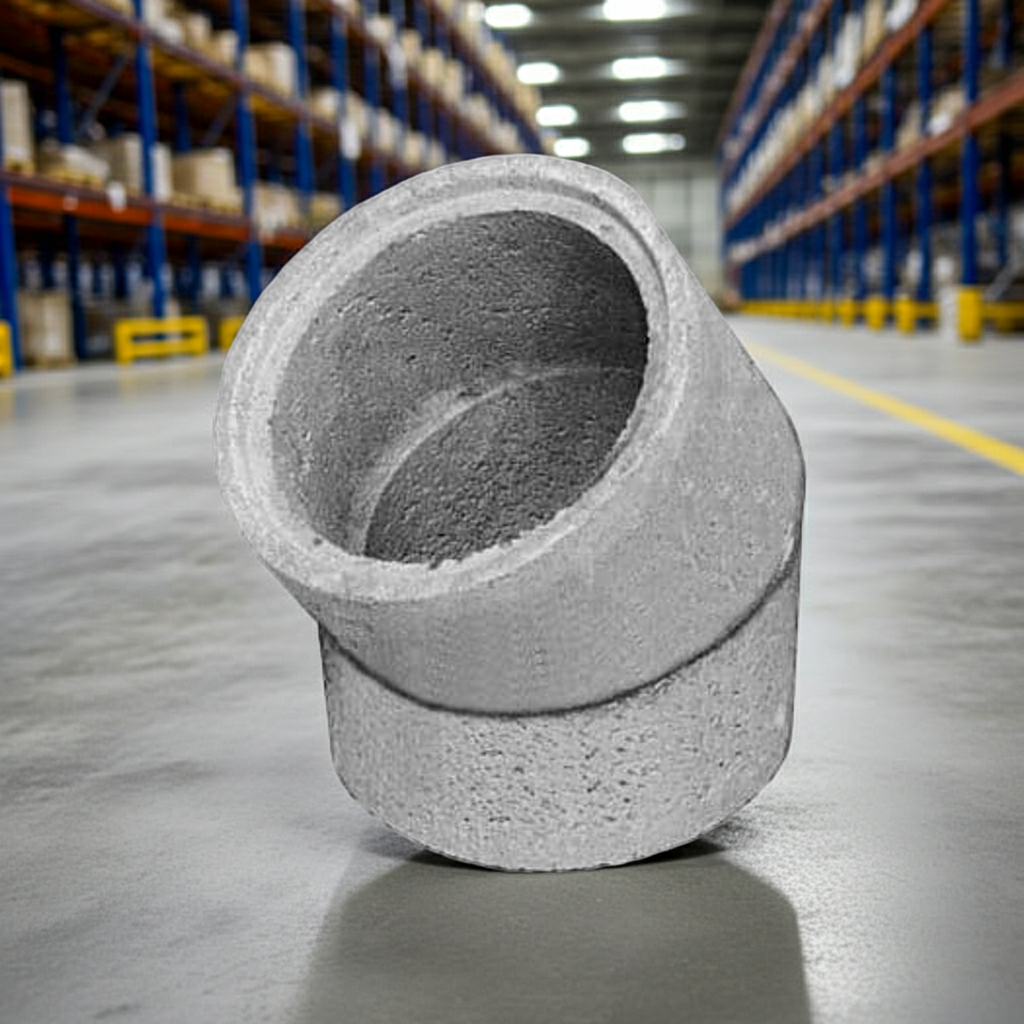

350mm 15°, 30° and 45° bends.What it is for: Offsets: up to two offsets (four bends), no more than 45° from vertical

View

Steel Collar for 350mm i/d

Required with lip glue on any cut joint.

View

Installation points from Schiedel

  • Install the liners socket uppermost and seal every joint with Isokern lip glue, about 2mm thick, removing any excess.
  • Surround the liners with at least 100mm of brick, block or stone, with a minimum 15mm of LECA mixed 20:1 with OPC cement in between.
  • Support any bends and backfill them with the LECA mix.
  • Keep combustible materials 200mm from the inner surface of the liner, or 40mm from the outside of the masonry chimney.
  • Terminate the chimney at the correct height under Approved Document J, then test it and fix the chimney notice plate in the dwelling.

The flue size is set by the appliance, so always follow the stove or fire manufacturer's instructions and Approved Document J.

Building to a standard height from 4.8m to 9.0m? A 350mm liner pack brings the liners, lip glue, LECA and a chimney notice plate together; connection parts are chosen separately.

Compare every size on the pumice flue liners page, or read how Isokern pumice flue liners work.

350mm pumice liner parts FAQs

Which Magnum firechests use a 350mm flue?

Schiedel gives a 350mm inside flue diameter for the Magnum 950, 1100 and 1200; see the Magnum firechests.

Can I use a smaller liner than the stove outlet?

No. Schiedel states the pumice flue must not be smaller than the spigot diameter of the appliance. The flue size is set by the appliance manufacturer.

Can a 350mm pumice flue serve a pellet, biomass or condensing appliance?

No. Schiedel states pumice is suitable only for dry chimneys, so it cannot be used with condensing appliances, including pellet and biomass.

Do I need a chimney pot?

Not necessarily. Schiedel says a pot or terminal is not essential, but it can be fitted for appearance or to help keep rain and birds out. We list 350mm pots in terracotta and buff on the chimney pots page.

How is a 350mm pumice flue swept?

At least twice a year, before and after the heating season, with a 350mm medium-density polypropylene brush. Steel brushes must not be used on pumice flues.

Need help choosing your 350mm pumice liner parts?

Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.

Isokern is made by Schiedel; we are not the manufacturer.
