200mm (8″) ID Pumice Liner

200mm is the 8 inch nominal size. It is the usual step up for a large stove or a small open fire.

13  Products


Which 200mm liner parts do I need?

Rebated volcanic pumice, lip-glued, with LECA around the liner. The 200mm liner pack does not include a stove starter. If you are connecting a stove, order the adaptor separately.

Specification: 200mm (8 inch) internal diameter, 250mm outside diameter, 600mm section length, approx. 12kg per section (Isokern price list). Certified by Schiedel to EN 1857 (T600 N2 D 3 G). Suitable for all fuel types, but not for condensing appliances.

Stainless Steel Adaptor 200mm i/d

Connects the stove pipe to the liner.

View

Stainless Steel Increaser Adaptor 175-200mm i/d

For an appliance outlet of 175mm onto a 200mm liner.

View

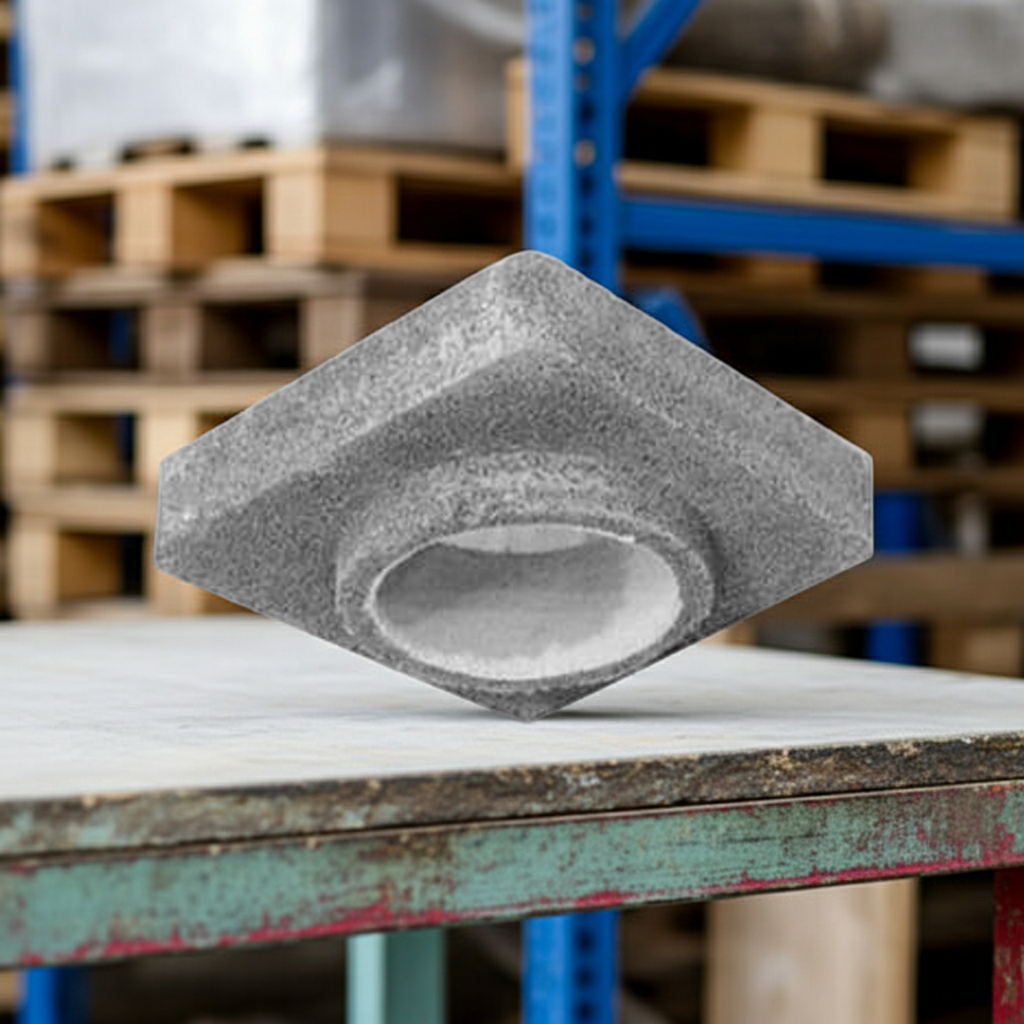

200mm i/d Liner Support Block

Base of the liner run at the appliance connection.

View

Support Plate for 175mm and 200mm i/d

Used with the liner support block.

View

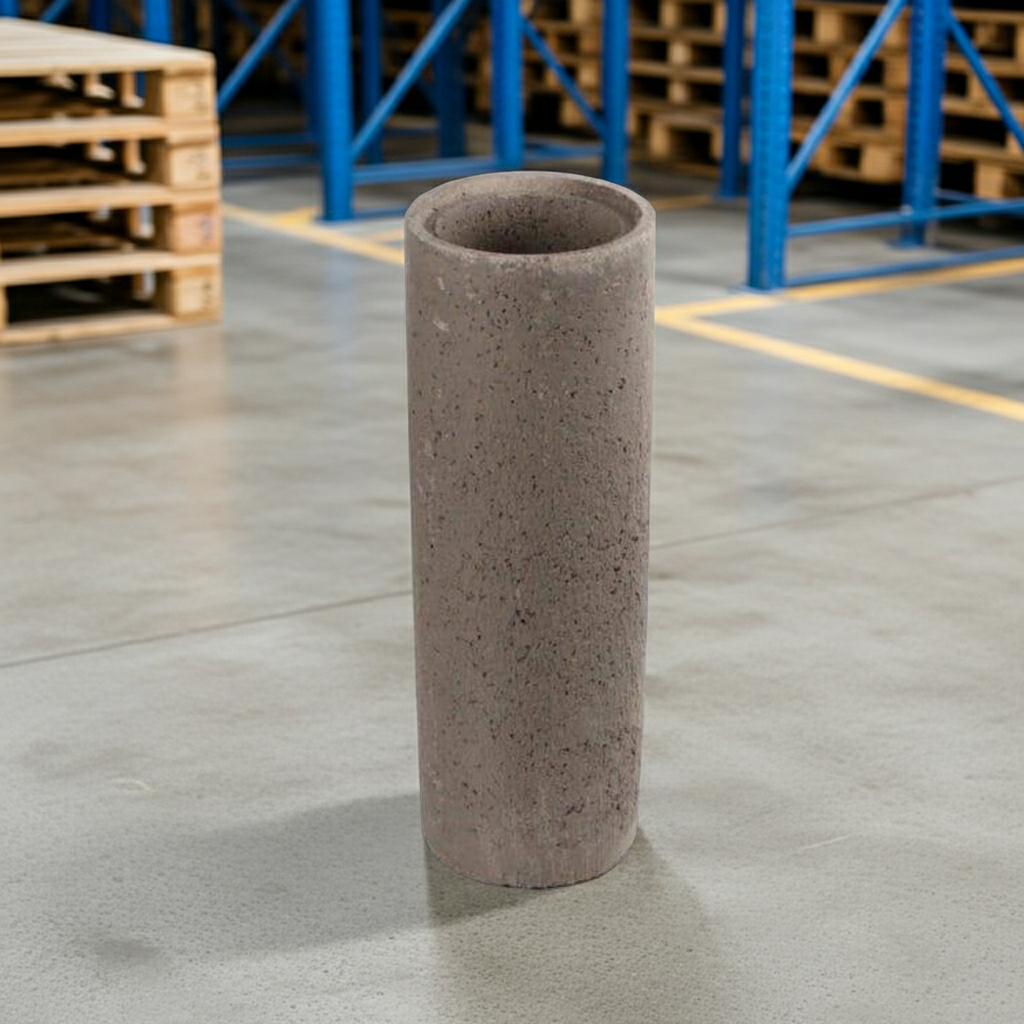

200mm i/d 600mm High Rebated Liner

The flue section; joints sealed with lip glue.

View

Lip Glue 5kg

Seals every pumice-to-pumice joint, about 2mm thick.

View

Light Expanded Clay Aggregate (50L Bag)

Insulation between the liners and the masonry, minimum 15mm.

View

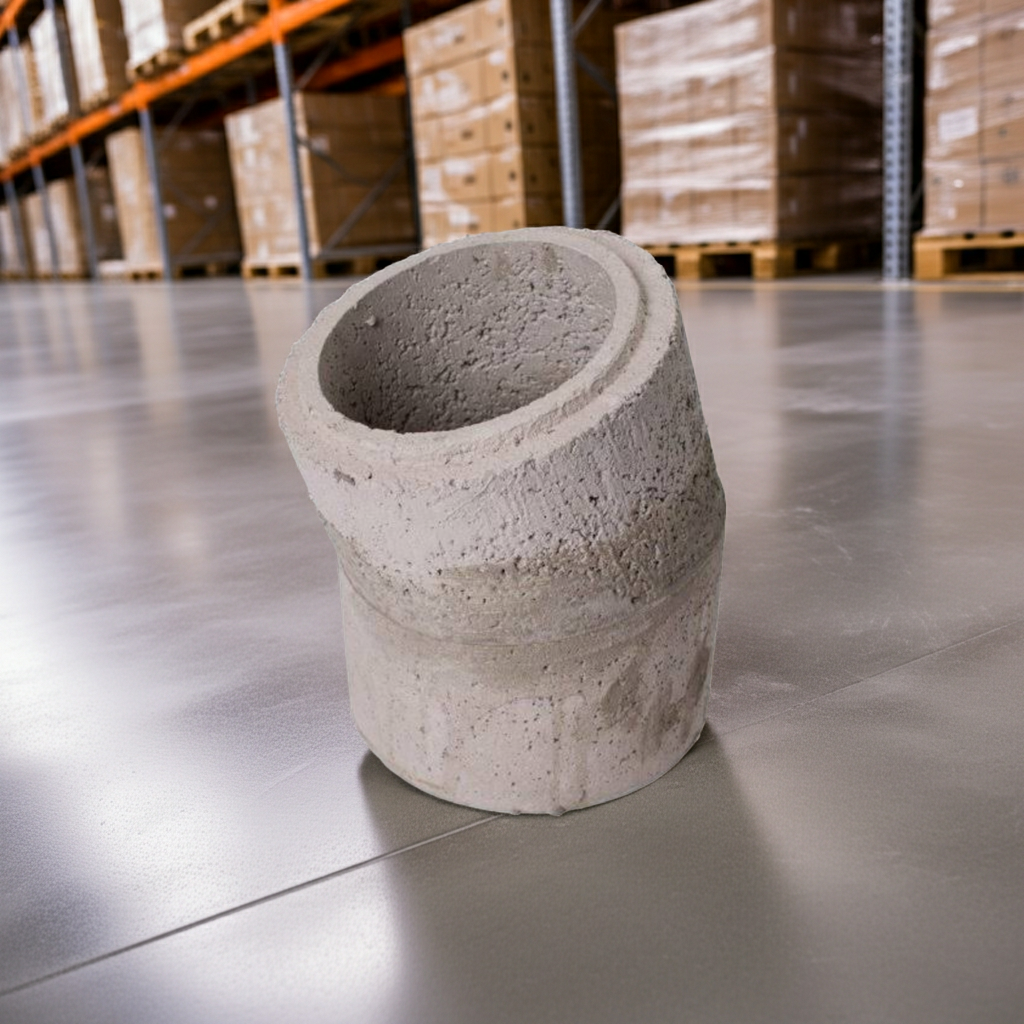

15°

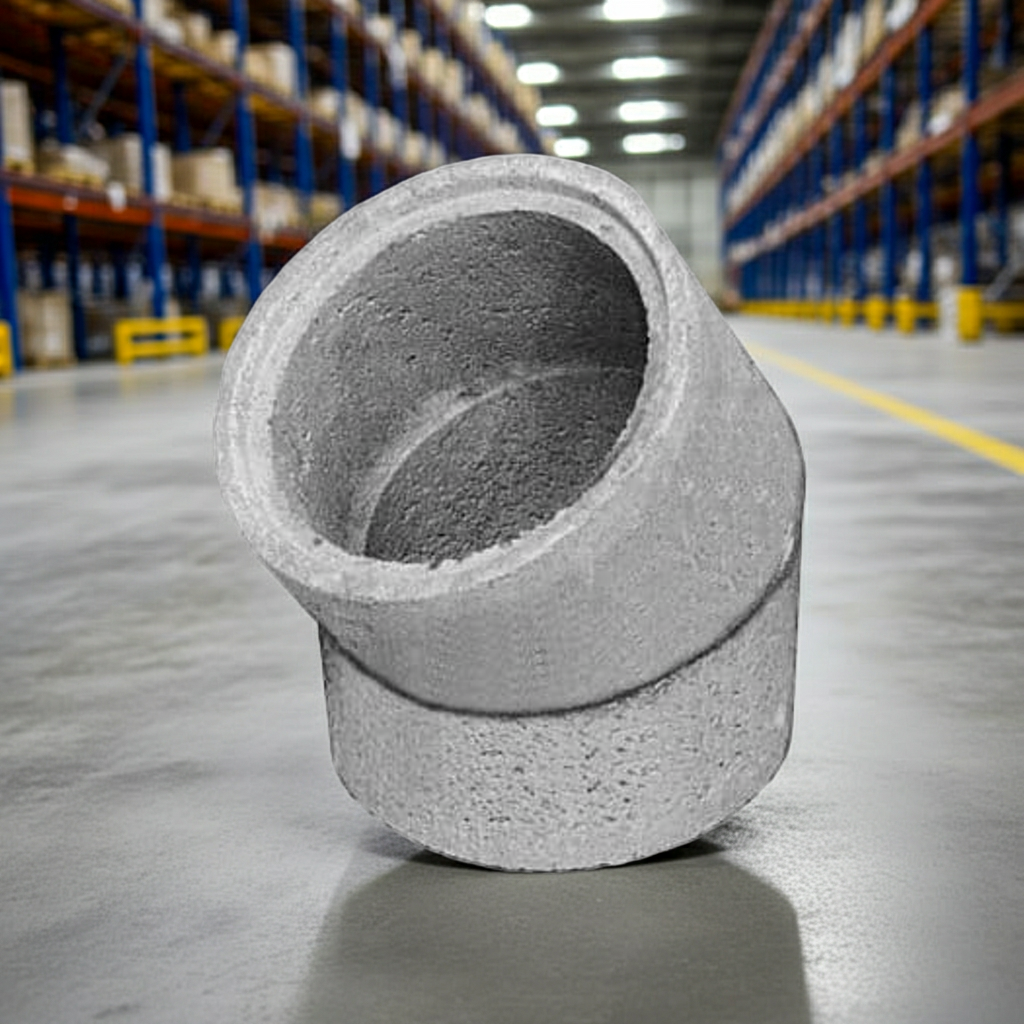

200mm 15°, 30° and 45° bends.What it is for: Offsets: up to two offsets (four bends), no more than 45° from vertical

View

Steel Collar for 200mm i/d

Required with lip glue on any cut joint.

View

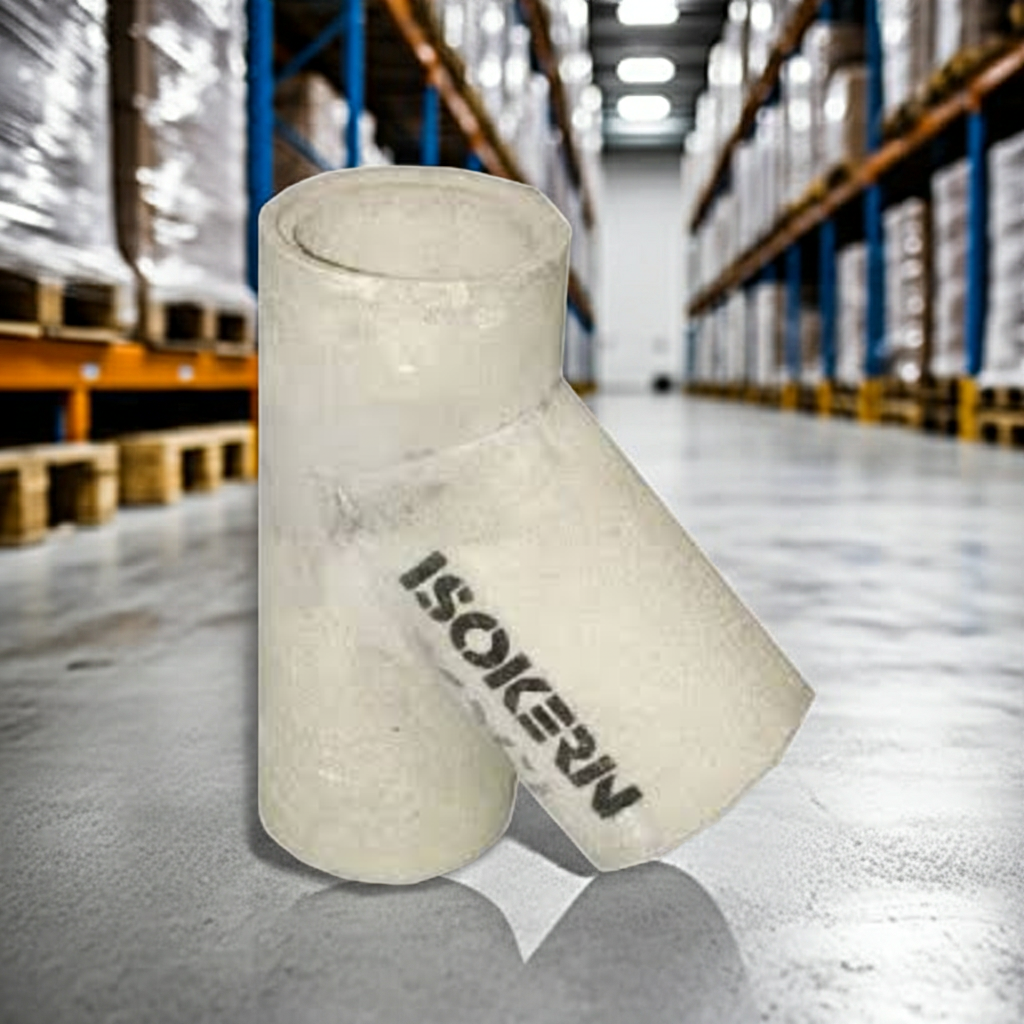

200mm i/d 45 Rebated T Liner

Rebated T section for a rear or side connection.

View

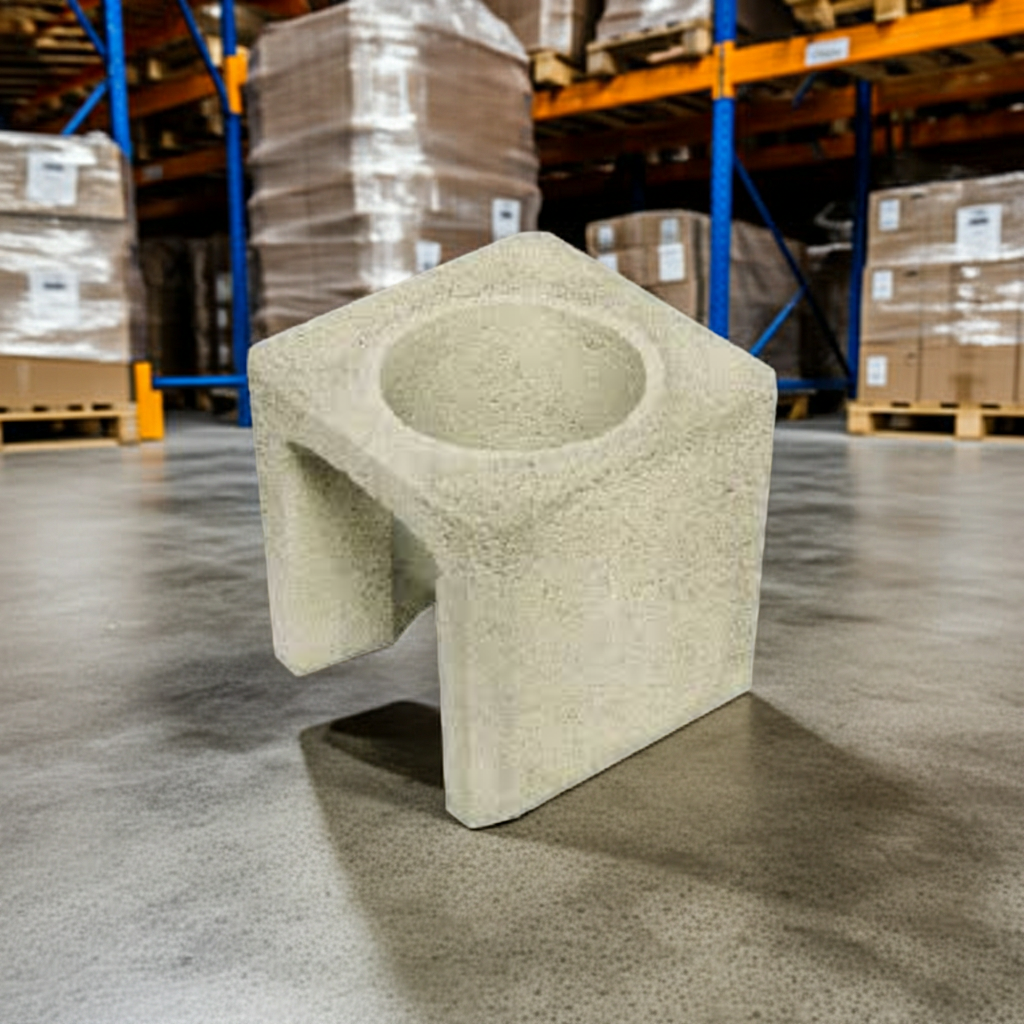

200mm i/d Rebated Access Block

Access section in the liner run.

View

Installation points from Schiedel

  • Install the liners socket uppermost and seal every joint with Isokern lip glue, about 2mm thick, removing any excess.
  • Surround the liners with at least 100mm of brick, block or stone, with a minimum 15mm of LECA mixed 20:1 with OPC cement in between.
  • Support any bends and backfill them with the LECA mix.
  • Keep combustible materials 200mm from the inner surface of the liner, or 40mm from the outside of the masonry chimney.
  • Terminate the chimney at the correct height under Approved Document J, then test it and fix the chimney notice plate in the dwelling.

The flue size is set by the appliance, so always follow the stove or fire manufacturer's instructions and Approved Document J.

Building to a standard height from 4.8m to 9.0m? A 200mm liner pack brings the liners, lip glue, LECA and a chimney notice plate together; connection parts are chosen separately.

Compare every size on the pumice flue liners page, or read how Isokern pumice flue liners work.

200mm pumice liner parts FAQs

Can a 200mm liner take a 150mm or 175mm stove outlet?

Yes. Stainless steel increaser adaptors from 150mm and 175mm to 200mm are listed. Schiedel states the pumice flue must not be smaller than the appliance spigot.

Can a 200mm pumice flue serve a pellet, biomass or condensing appliance?

No. Schiedel states pumice is suitable only for dry chimneys, so it cannot be used with condensing appliances, including pellet and biomass.

Do I need a chimney pot?

Not necessarily. Schiedel says a pot or terminal is not essential, but it can be fitted for appearance or to help keep rain and birds out. We list 200mm pots in terracotta and buff on the chimney pots page.

How is a 200mm pumice flue swept?

At least twice a year, before and after the heating season, with a 200mm medium-density polypropylene brush. Steel brushes must not be used on pumice flues.

Can a 200mm liner serve an open fire?

Yes, with a suitable gather such as the C16 concrete gather for 200mm and 225mm liners. Schiedel gives a minimum chimney height of 4.5m from the top of the fire opening.

Need help choosing your 200mm pumice liner parts?

Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.

Isokern is made by Schiedel; we are not the manufacturer.
