Magnum Firechests
A Magnum is a ready-made pumice chamber for an open solid-fuel fire, from 500mm to 1200mm opening width. Tested to EN 13229, load-bearing to 2600kg.
Which Magnum firechest do I need?
There is no fixed kilowatt rating. The fire opening and the flue size decide the appliance. Lip glue is in the kit. Size the flue on the flue size calculator; the gather elements come with the firechest, so add either liners or DM blocks above them.
Schiedel's Isokern Magnum firechests are flat-packed pumice fire chambers that build quickly into a neat, preformed fire opening ready for finishing. The specially shaped chamber is designed to burn wood logs efficiently, with efficiencies from 41% to 45% depending on the model. The range is tested to EN 13229 (Fraunhofer Institut, Stuttgart, certificate P8-094/2006), and the firechest is load-bearing, carrying up to 2,600kg of chimney above; more is possible with additional lintels.
See all models side by side in Magnum Firechest Kits.
Magnum 500
Magnum 500.Fire opening (W x H): 510 x 540mm; External (W x H x D): 685 x 1540 x 440mm; Weight: 390kg; Inside flue diameter: 200mm; Free air: 200cm²
ViewMagnum 950

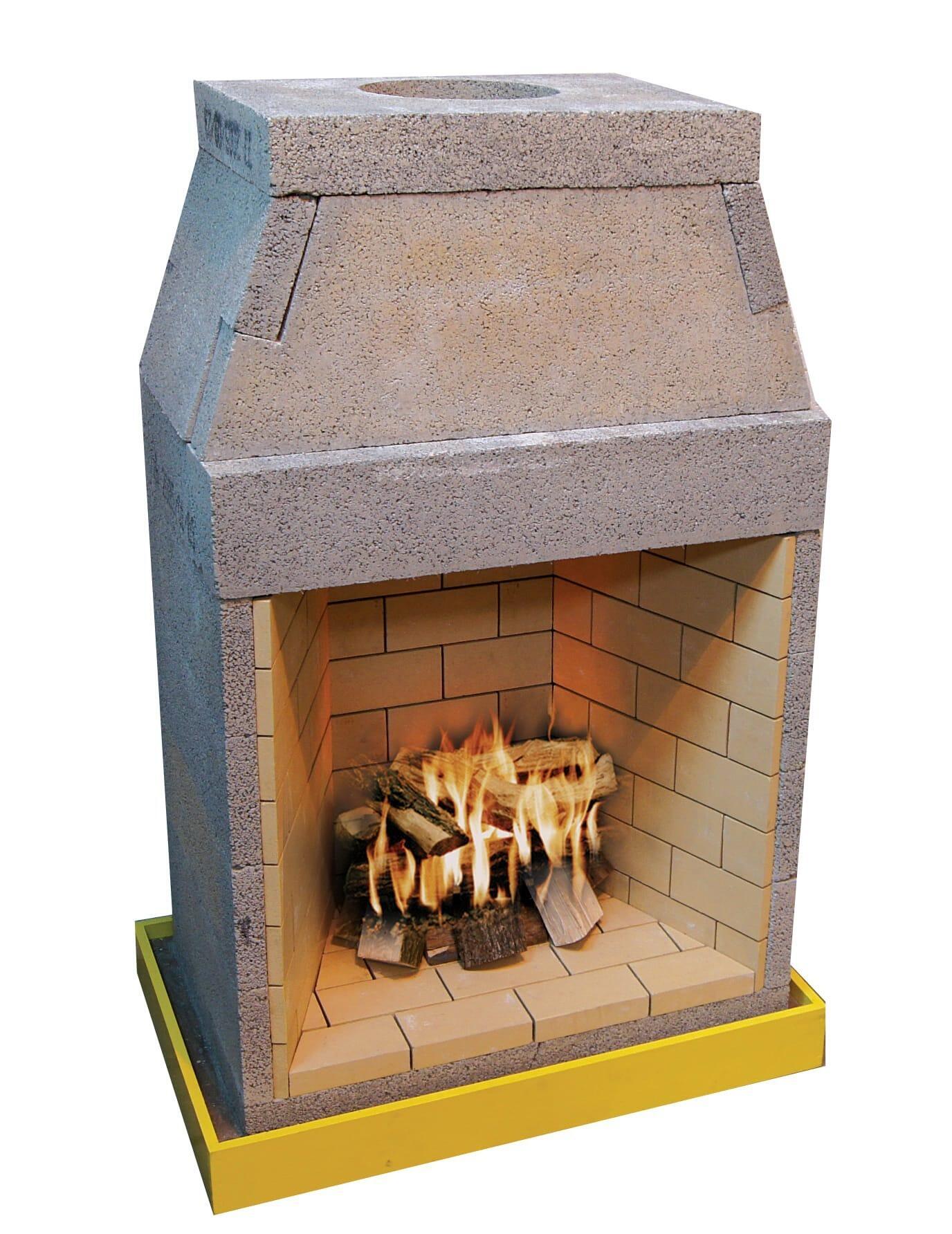

Magnum 950.Fire opening (W x H): 990 x 960mm; External (W x H x D): 1090 x 1761 x 710mm; Weight: 715kg; Inside flue diameter: 350mm; Free air: 248cm²
ViewMagnum 1100
Magnum 1100.Fire opening (W x H): 1130 x 960mm; External (W x H x D): 1230 x 1761 x 710mm; Weight: 790kg; Inside flue diameter: 350mm; Free air: 338cm²
ViewMagnum 1200
Magnum 1200.Fire opening (W x H): 1246 x 960mm; External (W x H x D): 1346 x 1761 x 710mm; Weight: 845kg; Inside flue diameter: 350mm; Free air: 385cm²
ViewMagnum firechests compared
| Model | Fire opening (W x H) | External (W x H x D) | Weight | Inside flue diameter | Free air | Shop |
|---|---|---|---|---|---|---|
| Magnum 500 | 510 x 540mm | 685 x 1540 x 440mm | 390kg | 200mm | 200cm² | Magnum 500 |
| Magnum 950 | 990 x 960mm | 1090 x 1761 x 710mm | 715kg | 350mm | 248cm² | Magnum 950 |
| Magnum 1100 | 1130 x 960mm | 1230 x 1761 x 710mm | 790kg | 350mm | 338cm² | Magnum 1100 |
| Magnum 1200 | 1246 x 960mm | 1346 x 1761 x 710mm | 845kg | 350mm | 385cm² | Magnum 1200 |
Figures from the Schiedel Isokern brochure and Magnum Firechest installation instructions. Free air is the combustion air the room needs for each model.
Choosing a model
- Opening: start with the fire opening you want, from 510mm wide on the Magnum 500 to 1,246mm on the Magnum 1200. The 950, 1100 and 1200 share a 960mm opening height, 710mm depth and 1,761mm external height.
- Flue: Schiedel gives an inside flue diameter of 200mm for the Magnum 500 and 350mm for the 950 to 1200. Schiedel shows the Magnum with either 350mm pumice liners in a masonry chimney or a DM54 system chimney (DM54 is listed in 300mm or 345mm). The minimum flue height is 4.5m above the fire opening.
- Air supply: the free air must reach the room through air bricks in the walls, floor or ceiling, not into the fire opening.
- Weight: the larger models weigh up to 845kg, so the foundation and constructional hearth must suit the load.
Installation notes from Schiedel
- Bed the base slabs on mortar on a suitable foundation and constructional hearth, checking they are plumb and level.
- Assemble the elements with lip glue, applied with the application bag in 20–25mm beads for finished joints of 2–3mm. Wipe away any excess.
- The firechest can be built against a wall but must not be glued to it.
- Fit the damper loose: no mortar or lip glue. Its weight holds it in place and leaves room for expansion.
- Build 100mm of brick or blockwork around both sides and behind the firechest. The front can be finished with plasterboard on dabs or render on mesh.

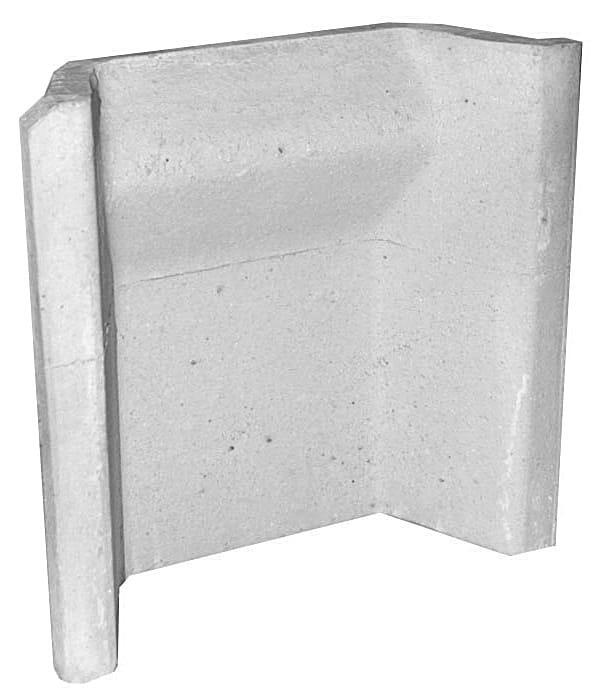

- Line the chamber with firebrick slips, 50mm thick on the back and base and 25mm thick on the sides. Glue them with firebrick mortar (now supplied as Isokern firebrick grout) and point them in; lay the base bricks loose and glue only the front row.
The damper
A flue damper is available in the Magnum range. In wood-burning installations it controls the draught and avoids heat loss when the fire is not in use, and Schiedel notes it halves the chimney ventilation rate in the SAP calculation for Document L. Open it before lighting. It must not be installed with gas fires.
Finishing and clearances
Timber can sit against the surrounding 100mm of masonry, and a wooden fireplace surround can go against the face of the firechest, but keep 40mm between the front face of the gather and any timber. Burn dry, seasoned wood (under 20% moisture) or HETAS-approved fuels.
Magnum firechest FAQs
Which Magnum firechest should I choose?
Choose by fire opening: 510mm wide (500), 990mm (950), 1,130mm (1100) or 1,246mm (1200). The 500 uses a 200mm flue; the 950 to 1200 use a 350mm flue.
Does the firechest need to be glued to the wall?
No. Schiedel says it can be built against a wall but not glued to it.
Should the damper be fixed in place?
No. Fit it loose, without mortar or lip glue, so it can expand. Open it before lighting the fire.
How much masonry goes around a Magnum?
100mm of brick or blockwork to each side and behind the back, to comply with the Building Regulations.
How tall must the chimney be?
Schiedel gives a minimum flue height of 4.5m above the fire opening.
Can I fit a gas fire?
Schiedel states the damper must not be installed with gas fires. Any appliance connected to a gas supply must be connected by a Gas Safe registered installer.
Need help choosing your Magnum firechest?
Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.
Isokern is made by Schiedel; we are not the manufacturer.
