Manor Gathers
Manor gathers cover the larger open-fire chambers, 900mm to 1150mm, with a centre or offset flue.
Which Manor gather do I need?
Use them where a standard pumice gather is too small. Match the outlet to the liner or DM system above, and keep the offset gentle. Choose the width and the hole position:
Manor 900, centre hole
350mm flue; 933mm internal width.1086 × 525 × 640mm, 140kg. Flue straight up from the middle.

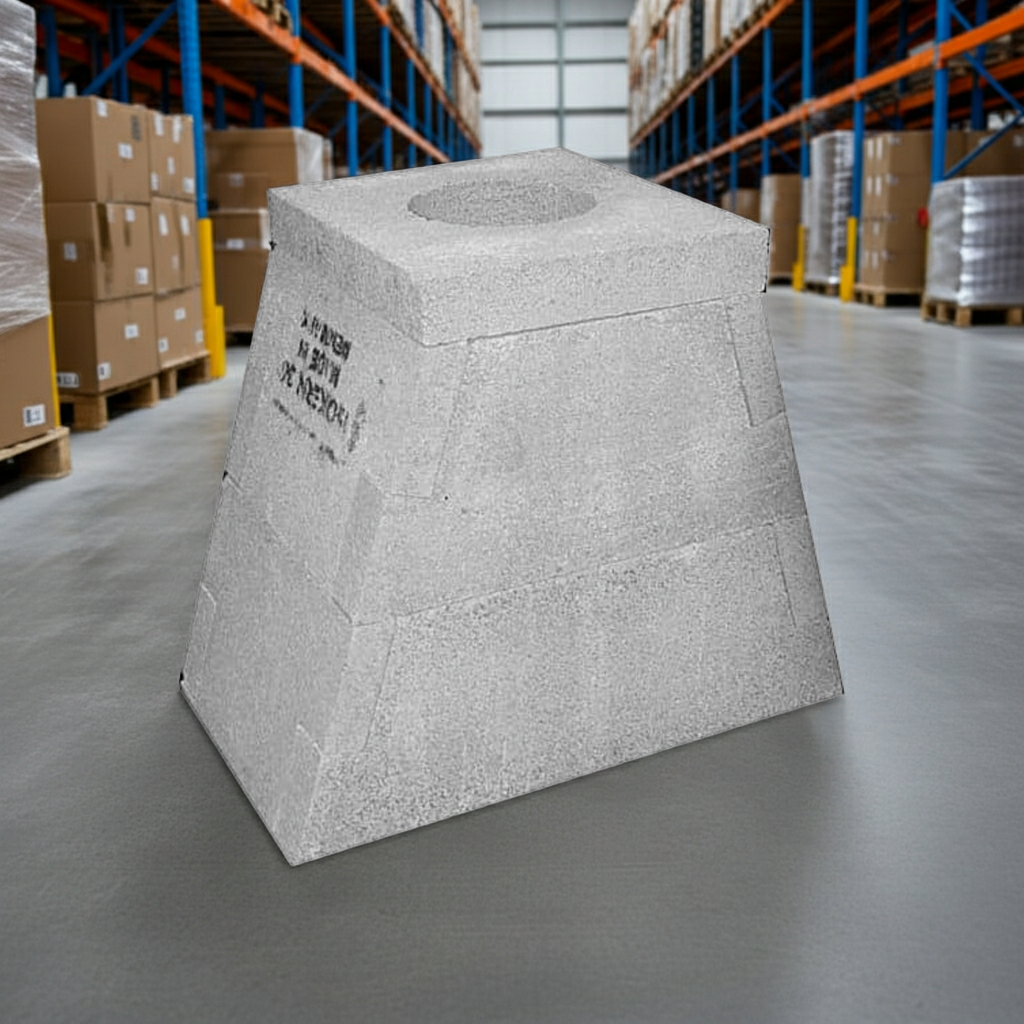

ViewManor 900, offset hole
350mm flue; 933mm internal width.1086 × 525 × 640mm, 140kg. Flue outlet set to one side.

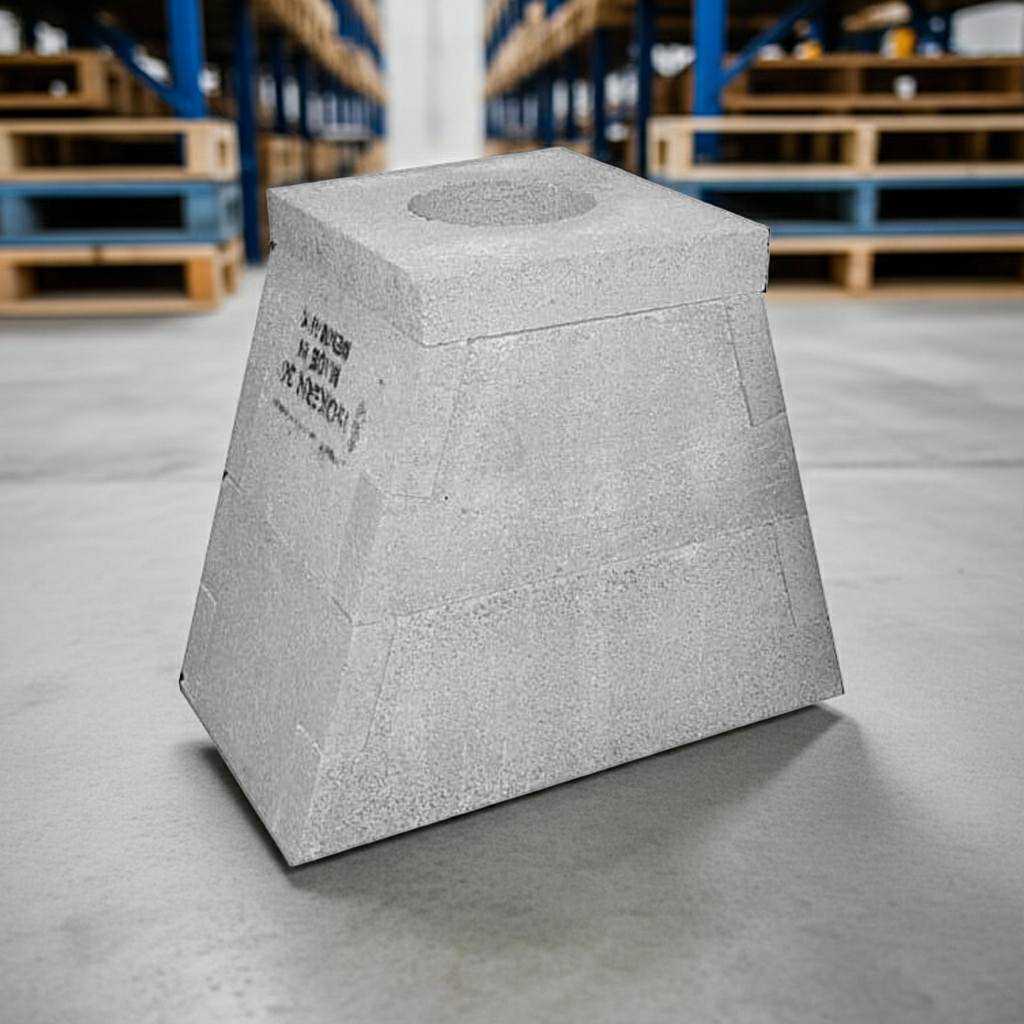

ViewManor 1150, centre hole
350mm flue; 1191mm internal width.1350 × 930 × 640mm, 268kg. Flue straight up from the middle.
ViewManor 1150, offset hole
350mm flue; 1191mm internal width.1350 × 930 × 640mm, 268kg. Flue outlet set to one side.
ViewThe 350mm outlet suits 350mm pumice liners or a DM54 chimney. Compare every gather type on the Gathers page.
Manor gather dimensions and weights
| Gather | Flue (ID) | Internal width | External W × H × D | Weight | Shop |
|---|---|---|---|---|---|
| Manor 900 Centre Hole | 350mm | 933mm | 1086 × 525 × 640mm | 140kg | View |
| Manor 900 Offset Hole | 350mm | 933mm | 1086 × 525 × 640mm | 140kg | View |
| Manor 1150 Centre Hole | 350mm | 1191mm | 1350 × 930 × 640mm | 268kg | View |
| Manor 1150 Offset Hole | 350mm | 1191mm | 1350 × 930 × 640mm | 268kg | View |
Figures from the Schiedel Isokern Chimney Systems brochure.
Technical downloads
Manor gather FAQs
What is the difference between a centre hole and an offset hole Manor gather?
The flue outlet position. A centre hole gather takes the flue straight up from the middle; an offset hole gather sets it to one side.
What flue does a Manor gather take?
Manor gathers have a 350mm flue outlet, for 350mm pumice liners or a DM54 chimney.
When do I need a Manor gather instead of a pumice gather?
When the open-fire chamber is wider than a standard pumice gather covers. Pumice gathers suit chambers up to 690mm; Manor gathers cover 900mm to 1150mm.
Need help choosing your Manor gather?
Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.
Isokern is made by Schiedel; we are not the manufacturer.
