Chimney Pots & Cowls
Terracotta and buff pots and cowls for Isokern flues from 150mm to 350mm.
Which chimney pot do I need?
Schiedel's roll-top chimney pots are made to terminate a chimney and are manufactured in accordance with BS EN 13502. They are freeze/thaw resistant, come in terracotta or buff, can easily take a top guard and are offered in six internal diameters from 150mm to 350mm. Match the pot to the internal diameter of the flue:
150mm × 450mm pot
150mm ID, 450mm high, approx. 14kg; terracotta or buff.Tops a 150mm stove flue.
View200mm × 450mm pot
200mm ID, 450mm high, approx. 16kg; terracotta or buff.Tops a 200mm flue for a large stove or small open fire.
View225mm × 300mm pot
225mm ID, 300mm high, approx. 12kg; terracotta or buff.A lower-profile pot for a 225mm open-fire flue.
View225mm × 450mm pot
225mm ID, 450mm high, approx. 18kg; terracotta or buff.The standard-height pot for a 225mm open-fire flue.
View250mm × 450mm pot
250mm ID, 450mm high, approx. 19kg; terracotta or buff.Tops a 250mm flue for a medium open fire.
View300mm × 450mm pot
300mm ID, 450mm high, approx. 26kg; terracotta or buff.Tops a 300mm flue for a medium to large or double-sided fire.
View350mm × 450mm pot
350mm ID, 450mm high, approx. 32kg; terracotta or buff.Tops a 350mm flue, including the wider Magnum firechests.
ViewEach row links to the terracotta pot; the buff version of every size is in the table below and in the product grid above.
Chimney pots compared
| Internal diameter | Height | Approx. weight | Terracotta | Buff | Matching liners |
|---|---|---|---|---|---|
| 150mm | 450mm | 14kg | Terracotta | Buff | 150mm liners |
| 200mm | 450mm | 16kg | Terracotta | Buff | 200mm liners |
| 225mm | 300mm | 12kg | Terracotta | Buff | 225mm liners |
| 225mm | 450mm | 18kg | Terracotta | Buff | 225mm liners |
| 250mm | 450mm | 19kg | Terracotta | Buff | 250mm liners |
| 300mm | 450mm | 26kg | Terracotta | Buff | 300mm liners |
| 350mm | 450mm | 32kg | Terracotta | Buff | 350mm liners |
Weights from the Schiedel Isokern Chimney Systems brochure. Every diameter is available at 450mm high; the 225mm pot is also available at 300mm high.

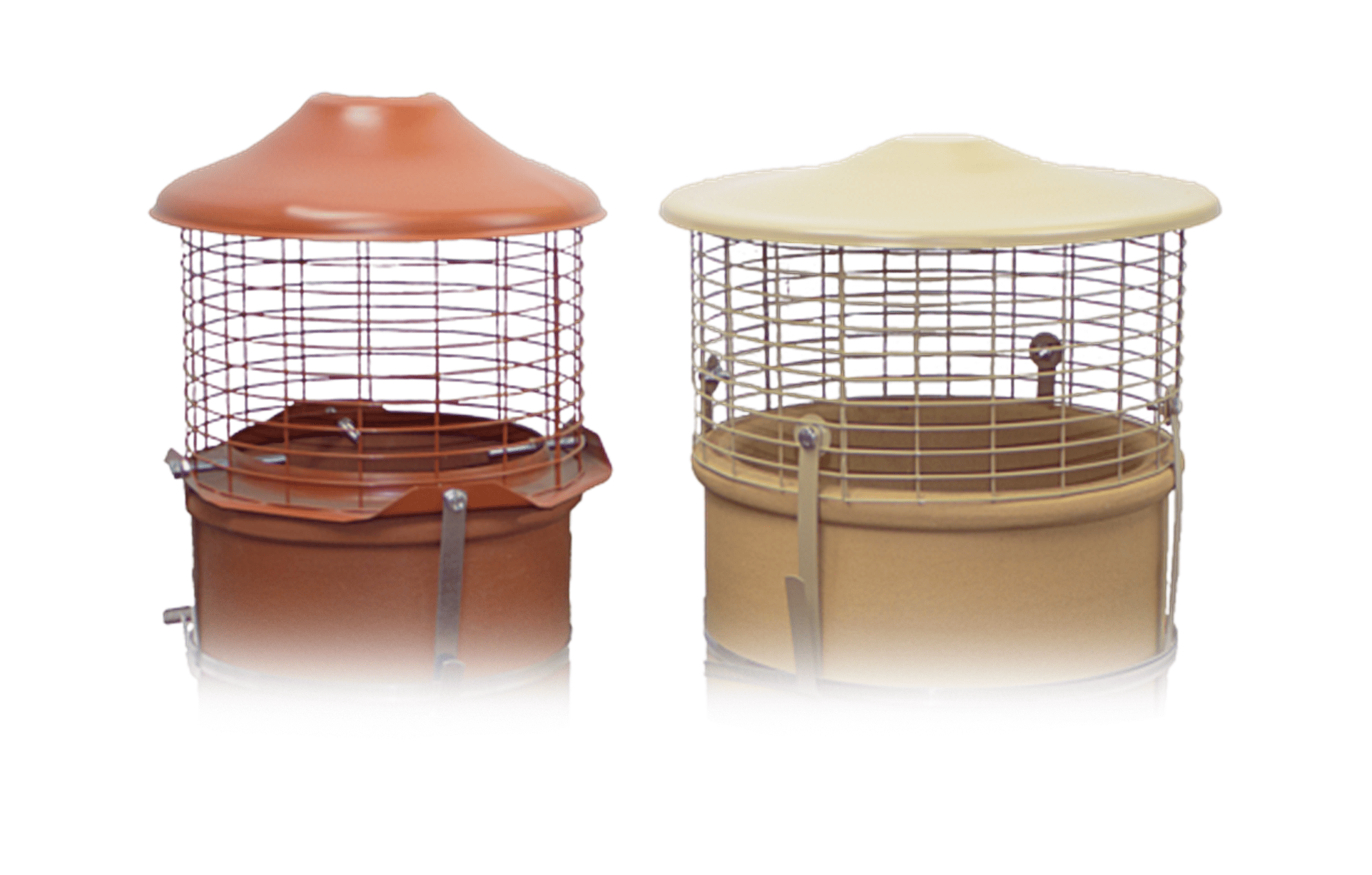

Top guards
| Fits | Terracotta | Buff |
|---|---|---|
| 150mm to 250mm pots | Terracotta | Buff |
| 300mm pots | Terracotta | Buff |
| 350mm pots | Terracotta | Buff |
Choose the guard that matches the pot diameter.
How to choose a pot
- Diameter: start with the internal diameter of the flue. The flue size itself is set by the appliance and Approved Document J, so the pot follows the liner, not the other way round. A pot one size up is sometimes chosen for the look on a smaller liner.
- Height: every diameter is available at 450mm high, and the 225mm pot is also available at 300mm high for a lower profile.
- Colour: terracotta gives the traditional red finish; buff is a lighter, sandier colour that suits stone and many modern brick stacks.
- Protection: Schiedel notes these pots can easily take a top guard.
Finishing an Isokern chimney
- Fit lead DPCs and flashings to the relevant regulations. Isokern recommends dressing the lead tray up the outside of the liners, with weep holes above the tray for drainage.
- Make sure the chimney terminates at the correct height under Approved Document J of the Building Regulations.
- Finish by flaunching (1:3 cement to sharp sand) either around the Isokern flue liner or around a suitable chimney pot. On a DM chimney with a pot, set the pot at least 75mm down into the capping and flaunch it; this finish needs a 38mm distance to combustibles.
- Fit a top guard or an approved rain cap to help prevent water entering the flue.
A DM chimney can instead be finished with its own rain cap and top ring: see the DM36, DM44 and DM54 sets. Garden fireplaces use the Wave terminal or top ring and rain cap sets in the garden fireplace accessories.
Technical downloads
Chimney pot FAQs
Which pot fits my liner?
Choose a pot with the same internal diameter as the flue liner. Pots are listed here from 150mm to 350mm, with matching liners linked in the table.
What standard are the chimney pots made to?
Schiedel states its roll-top chimney pots are manufactured in accordance with BS EN 13502 and are freeze/thaw resistant.
Do I need a pot on an Isokern chimney?
Not always. Schiedel allows the chimney to be finished by flaunching around the liner itself or around a suitable chimney pot. The chimney must still terminate at the correct height under Approved Document J.
Terracotta or buff?
Both are available in every size. Terracotta gives the traditional red finish; buff is a lighter, sandier colour that suits stone and many modern brick stacks.
Can I fit a top guard?
Yes. Schiedel notes the pots can easily take a top guard. One guard fits 150mm to 250mm pots, with separate guards for 300mm and 350mm, in terracotta or buff.
How much does a chimney pot weigh?
From approx. 12kg for the 225mm × 300mm pot to approx. 32kg for the 350mm pot, per the Schiedel brochure.
How is a chimney pot fixed?
It is flaunched in with a 1:3 cement to sharp sand mix. On a DM chimney the pot is set at least 75mm down into the capping.
What finishes a DM chimney?
A double module chimney can use the matching DM36, DM44 or DM54 rain cap and top ring set rather than a pot.
Need help choosing your chimney pot?
Speak to our Isokern team on 0113 322 5187 or email [email protected]. Tell us the flue size and the colour of the stack, and we will match the pot and top guard.
Isokern is made by Schiedel; we are not the manufacturer.
