DM44

DM44 is the mid Isokern system, for a 180mm or 200mm flue. It is the usual pumice chimney for an open fire or a cassette at that size.

33  Products


Which DM44 parts do I need?

DM44 is the Isokern Double Module system with a 180mm or 200mm internal diameter inside a 440mm square, 300mm high outer casing. Schiedel lists it for inserts, stoves and small open fires. Like all DM chimneys it is certified to EN 1858 (T450 N1 D 3 G(00)) and suits dry chimneys only, so not condensing, pellet or biomass appliances.

Match the adaptor to the appliance outlet and the block. A 200mm outlet only sits on a 200mm block. Plan the height on the DM calculator.

DM44 components

ComponentSizeWeightShop
Square casing440mm square, 300mm high30kgView

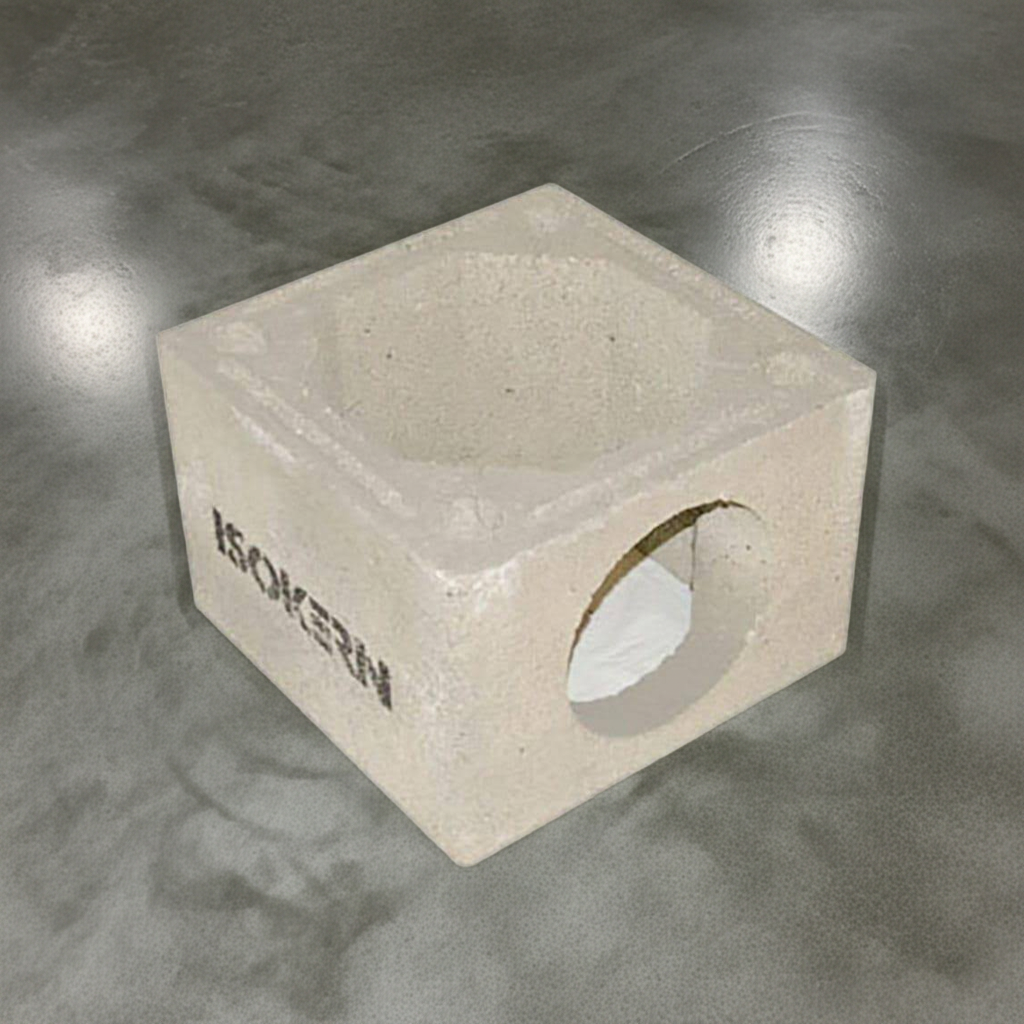

Access casing300mm high, 220mm access hole29kgView

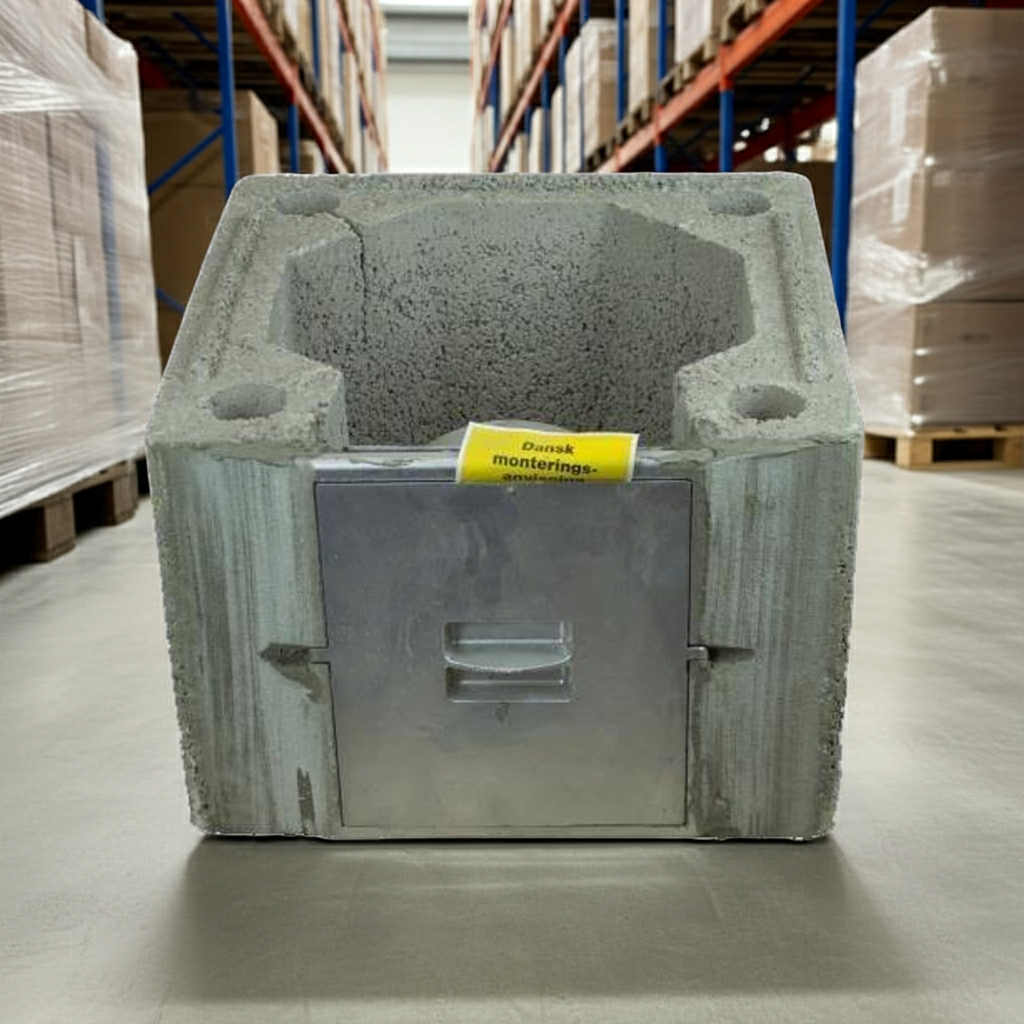

Casing and soot door300mm high36kgView
45° flue entry kit, 180mm (4 parts)600mm high86kgView
45° flue entry kit, 200mm (4 parts)600mm high84kgView
Starter flue block, 180mm310 x 310mm, 150mm high8kgView
Starter flue block, 200mm310 x 310mm, 150mm high7kgView
Flue block, 180mm310 x 310mm, 300mm high15kgView
Flue block, 200mm310 x 310mm, 300mm high14kgView
Access flue block, 180mm600mm high28kgView
Access flue block, 200mm600mm high26kgView
Offset block, 180mm56mm, 30°, 100mm high22kgView
Offset block, 180mm86mm, 30°, 150mm high32kgView
Offset block, 200mm56mm, 30°, 100mm high20kgView
Offset block, 200mm86mm, 30°, 150mm high30kgView
Square support block, 180mm100mm high22kgView
Square support block, 200mm100mm high20kgView
Stainless steel adaptor200mm i/d, 255mm o/d–View
Adaptor 150mm to 200mm255mm o/d–View
Adaptor 175mm to 200mm255mm o/d–View
Corbel for brickwork650mm square, 75mm high40kgView
Offset corbel for brickwork650 x 560mm, 75mm high34kgView

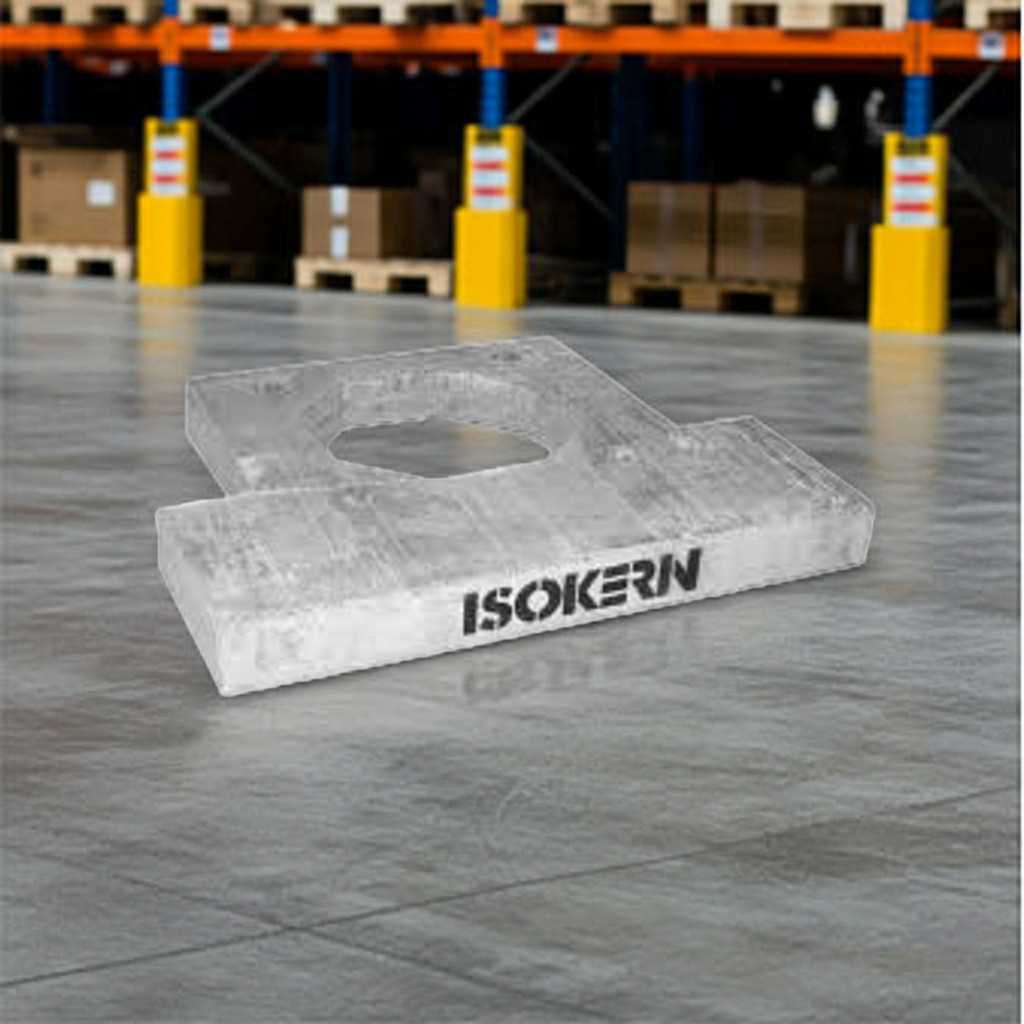

T corbel for external brickwork740mm, 75mm high47kgView

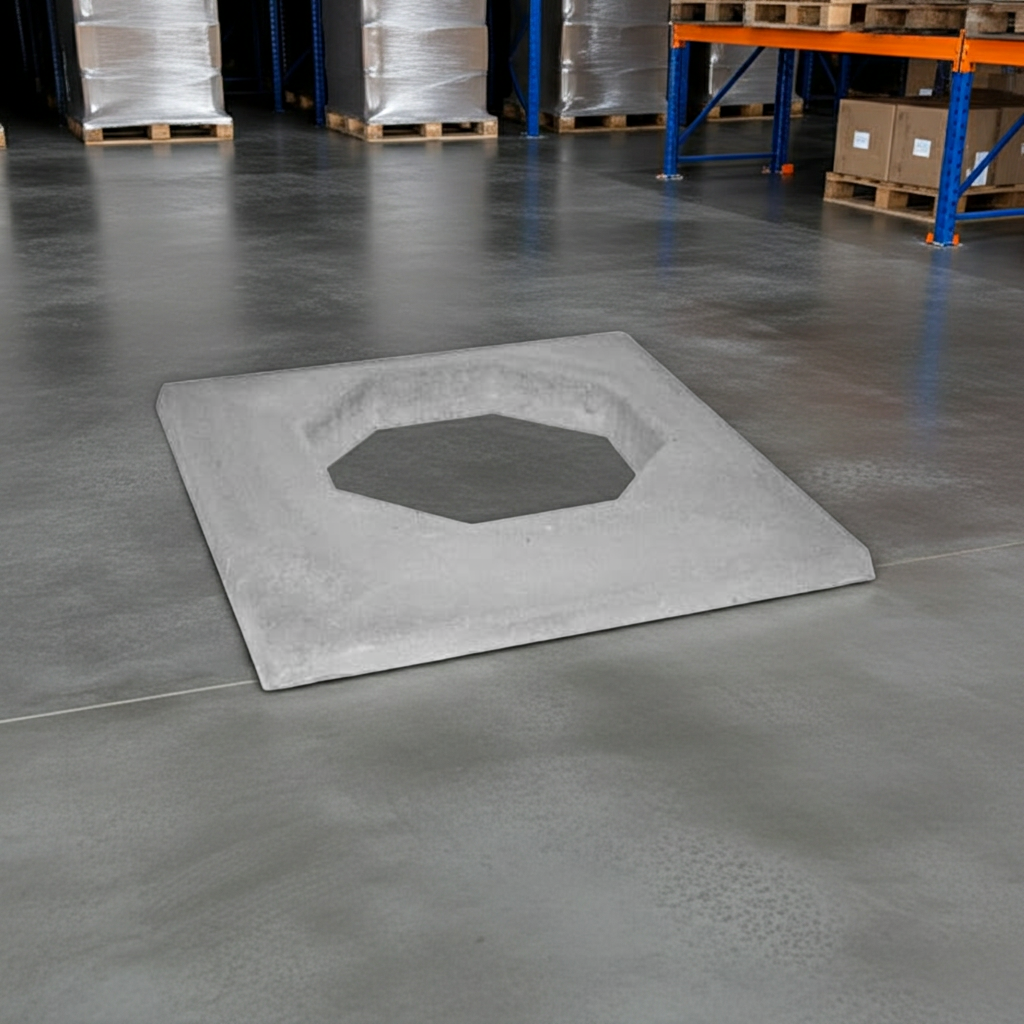

Capping for render570mm square18kgView
Capping for brickwork820mm square44kgView

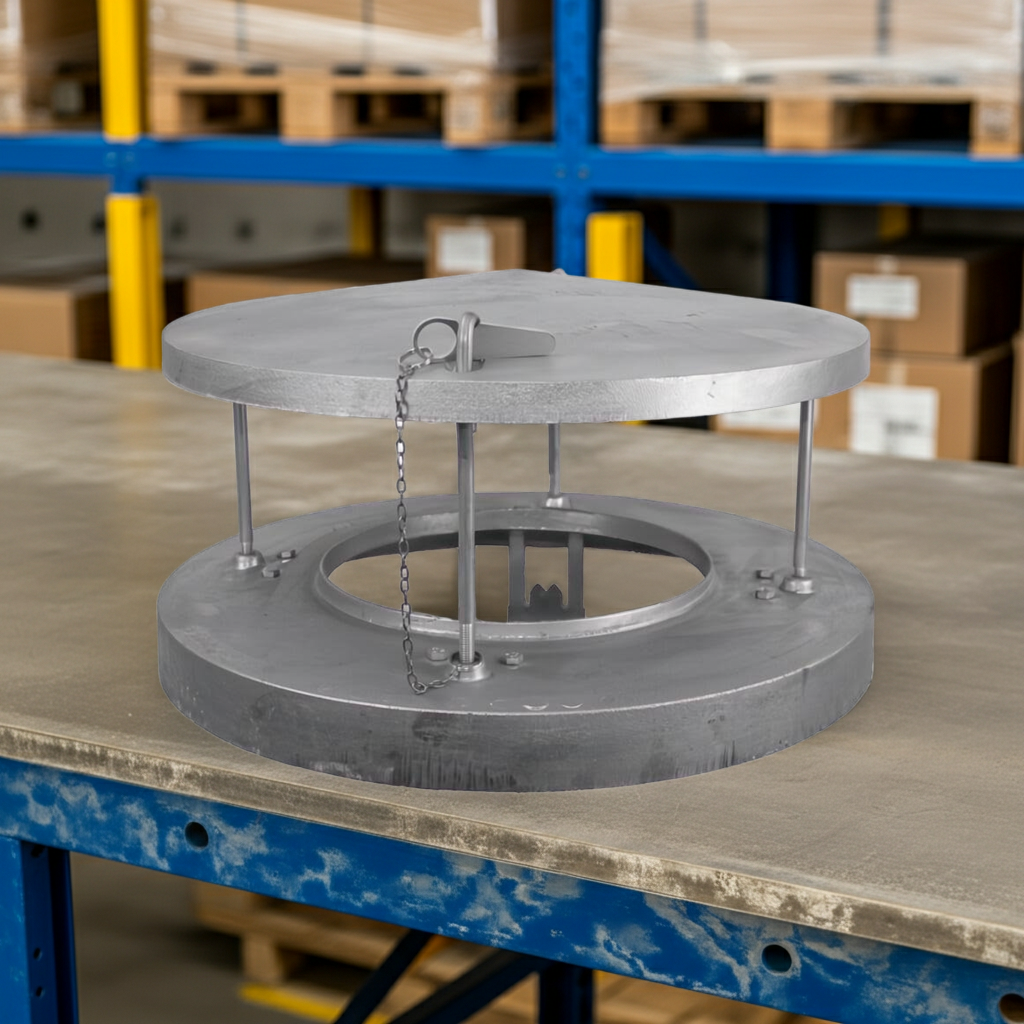

Rain cap and top ringVentilated finish–View

Dimensions and weights from the Schiedel Isokern brochure. Wall ties, reinforcement rods and the double soot door are shared across the DM range: stainless steel wall tie, 1m reinforcement rod and double soot door.

Connecting the appliance

  • Appliance below the chimney: the DM44 square support block sits on pre-stressed lintels or a cast-in-situ concrete slab, and a stainless steel adaptor connects the flue pipe, sealed with fibre rope. Schiedel recommends at least 600mm of flue pipe before the support block.
  • Flue pipe through the wall: use the 45° flue entry kit, with a soot door casing and access flue block below the entry. Seal the cavity with a suitable wall sleeve, and keep combustible insulation at least 1.5 times the pipe diameter from a single-wall connecting pipe.

Finishing above the roof

  • Render: render the casings above the roof with a two-part waterproof render (Schiedel recommends 1:2:5–6 cement:lime:sand undercoats and a 1:2:8–9 final coat, no coat over 15mm), then lip glue the 570mm square render capping onto the last casing and fit the ventilated rain cap and top ring.
  • Brick or stone: fit the 650mm square, 75mm high corbel just below the roof to carry the cladding, and finish with the 820mm square brickwork capping.
  • Chimney pot: set the pot at least 75mm into the capping and flaunch it 1:3; this always needs 38mm to combustibles.

Key installation points

  • Lay casings (rebate uppermost) and flue blocks (socket uppermost) together with staggered joints, starting with a starter flue block.
  • Seal every joint with lip glue: 2–3mm finished joints from 12–15mm beads, keeping the air gap clear.
  • Keep 38mm to combustibles, or zero on a straight rendered chimney with the ventilated top ring.
  • Tie external chimneys at maximum 1.5m intervals, and add reinforcement rods above 1.4m over the roof line.

For the full build sequence see the Double Module guide, and plan the blocks on the DM calculator.

DM44 parts FAQs

What sizes does DM44 come in?

Schiedel lists DM44 in 180mm and 200mm internal diameters. Both inner flue blocks fit the same 440mm outer casing.

Can I connect a stove with a 150mm or 175mm outlet?

Schiedel lists 150mm to 200mm and 175mm to 200mm stainless steel adaptors for the 200mm flue. The pumice flue must not be smaller than the appliance spigot.

Which offset block should I use?

DM44 offset blocks give a 56mm or 86mm offset at 30°, in 180mm and 200mm. Offsets must be glued, fully supported and followed by a starter flue block, and an offset chimney needs 38mm to combustibles.

Can DM44 be clad in brick?

Yes. Fit a corbel just below the roof to carry the brick or stonework; DM44 has square, offset and T corbels.

Need help choosing your DM44 parts?

Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.

Isokern is made by Schiedel; we are not the manufacturer.
