Garden Fireplace
Isokern garden fireplaces are volcanic pumice kits for a garden fire, in 500mm, 950mm and 1200mm openings. See all three in Garden Fireplace Kits.
Which garden fireplace size do I need?

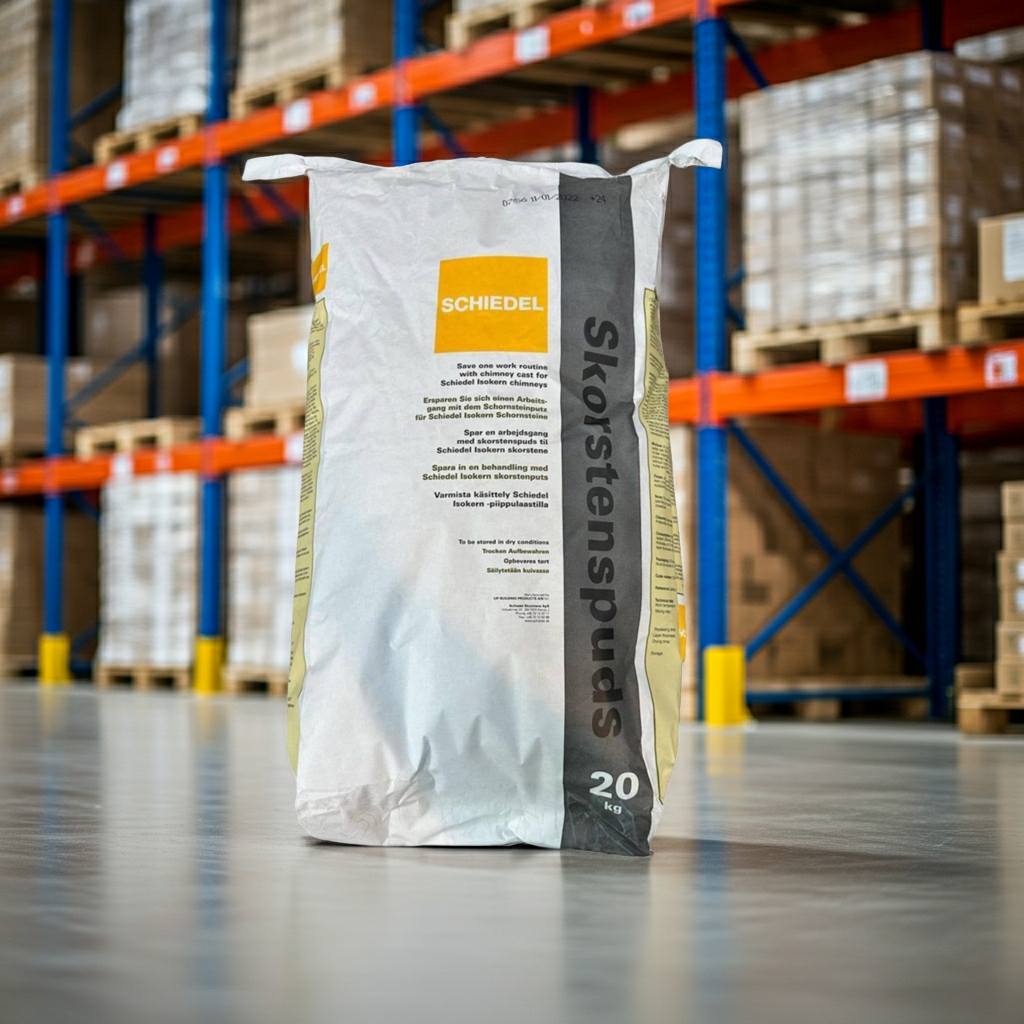

The blocks are light enough to move down a side path. Kits include the chamber blocks, firebricks and the render mortar. Add a rain cap or extra height from the accessories if the design needs them.

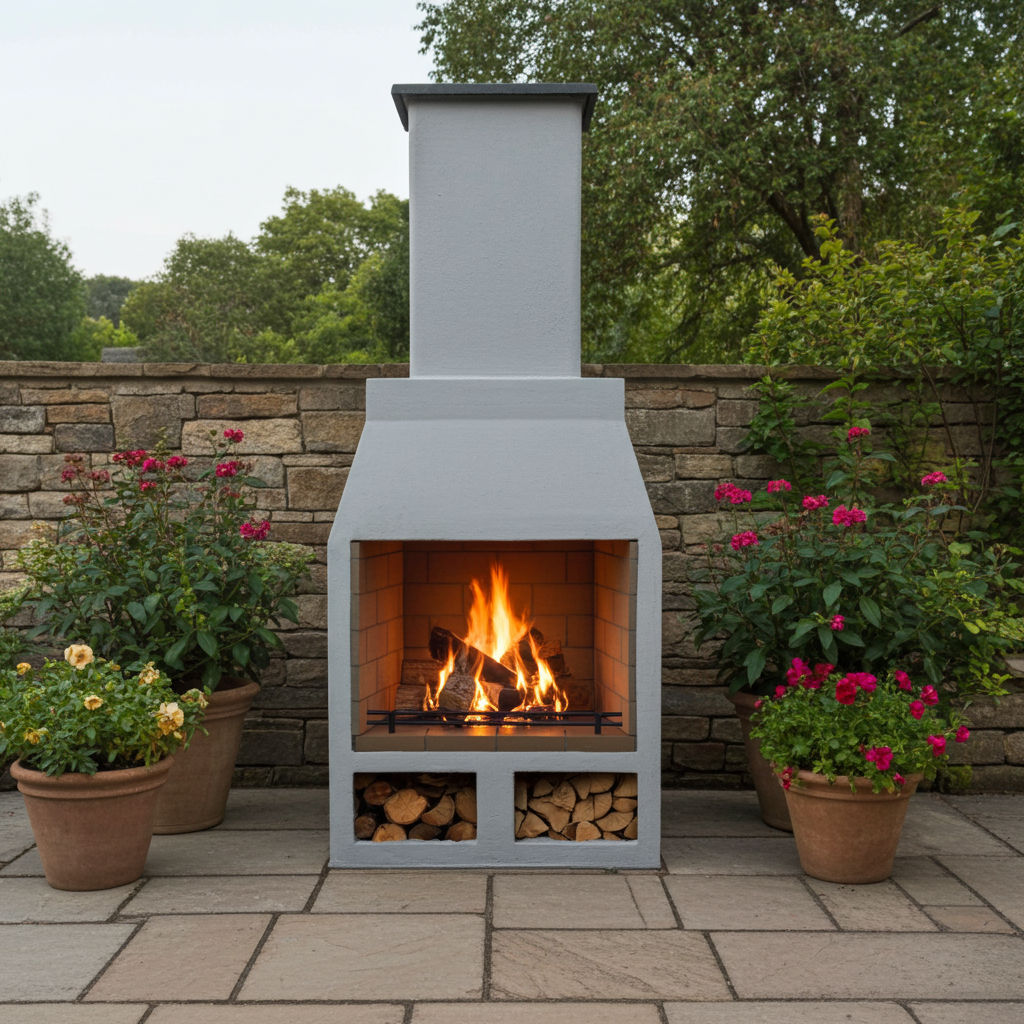

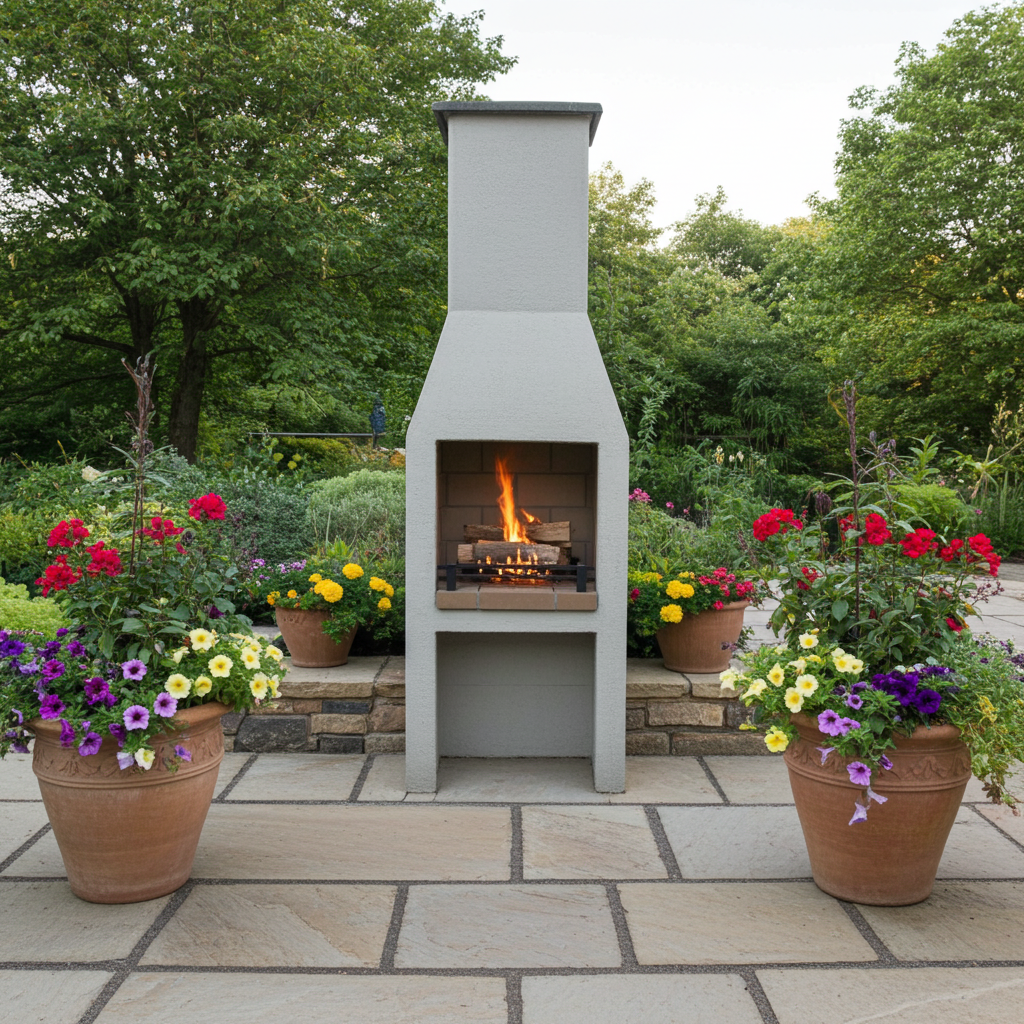

Isokern garden fireplaces are made by Schiedel from natural volcanic pumice, which Schiedel describes as giving the fireplace all the insulation it needs to be a safe and spectacular focal point, and a way to use the garden into the colder autumn and winter months. Because pumice is such an effective insulator, Schiedel notes that the outside of the fireplace stays safe to touch. There are three sizes: small (500), medium (950) and large (1200).
Garden fireplace sizes compared
| Model | Width | Depth | Height | Shop |
|---|---|---|---|---|
| Small (500) | 685mm | 440mm | 2155mm | Small 500 |
| Medium (950) | 1090mm | 640mm | 2250mm | Medium 950 |
| Large (1200) | 1330mm | 640mm | 2250mm | Large 1200 |
Dimensions as published by Schiedel for the standard build. The medium model was featured on ITV's Love Your Garden with Alan Titchmarsh.
Choosing a size
Start with the space. The small model is the most compact at 440mm deep and 685mm wide, which suits a patio or a tight corner. The medium and large models share a 640mm depth and 2250mm height and give a wider fireplace for a larger garden or entertaining space. Schiedel notes the footprint is small enough to stand against a wall even in a small garden or yard.
Base and position
- Base: the fireplaces are fully load-bearing but heavy, about 460kg for the small model and about 1,100kg for the large. Schiedel says they must never be built on timber decking and recommends a flat, minimum 100mm thick reinforced concrete base.
- Clearance: Schiedel specifies a minimum 75mm gap between the 500, 950 and 1200 fireplaces and any combustible material, such as a wooden fence or pergola.

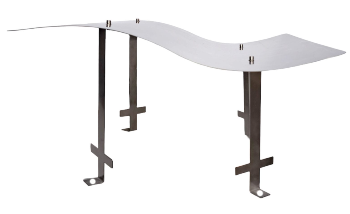

- Pergolas: the chimney must fully clear the pergola canopy so smoke and sparks disperse away from the seating area. Extra chimney blocks can raise the stack, and Schiedel recommends a Wave top rain cap to keep a reliable upward draught.
- Freestanding height: the standard kits are tested to be freestanding at their delivered heights. Schiedel advises against extending a freestanding chimney beyond 3 metres in total without a professional structural review, and recommends a structural engineer for exposed, high-wind sites.
- Smoke: position the fireplace so prevailing winds do not push smoke towards neighbouring windows, and raise the chimney if needed so smoke discharges cleanly upwards.
Planning permission
Schiedel's guidance is that, for most homes, a permanent outdoor fireplace falls under permitted development, provided:
- a structure up to 2.5m tall may sit close to the boundary; anything taller must be more than 2 metres from any boundary, and then up to 3 metres (or 4 metres with a dual-pitched roof);
- it is not forward of the front of the house;
- the fireplace, outdoor kitchen modules and other outbuildings take up no more than half of the land around the original house.
Listed buildings, conservation areas, National Parks and Areas of Outstanding Natural Beauty usually have tighter rules, so check with your local council before you start.
Build options and accessories
- Each model can be built freestanding, raised, or against a wall.

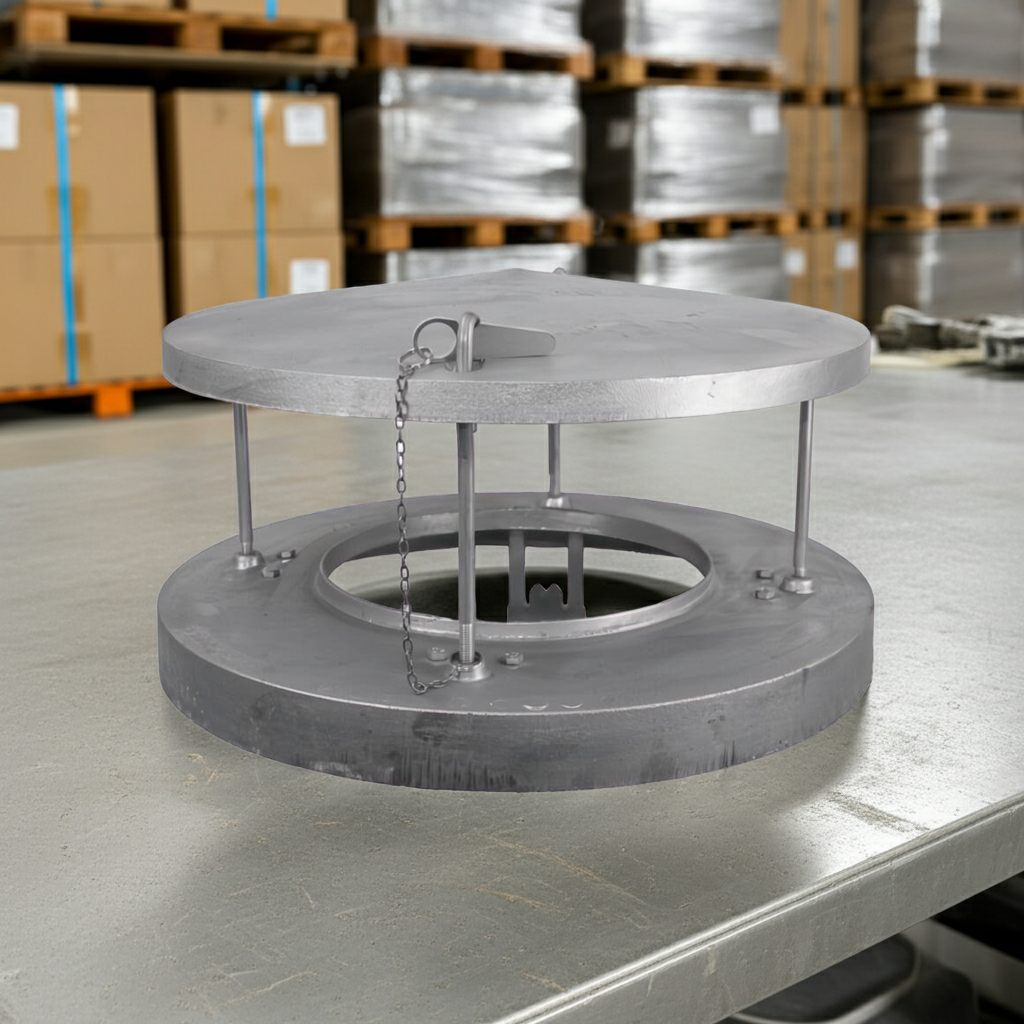

- Build the chimney taller with additional chimney blocks, and add a Wave top rain cap (optional on all models), from the garden fireplace accessories.
- Schiedel describes the kits as straightforward for any competent, handy person to assemble by following the instructions.
What to burn
Schiedel recommends clean, dry, seasoned logs, ideally carrying the Woodsure Ready to Burn mark (moisture content below 25%). Never burn treated or painted wood, pallets, plastic or household rubbish, which give off toxic smoke and build up tar in the chimney.
Want cooking space too? See the Kingham and Hale outdoor kitchens, or read choosing an Isokern garden fireplace.
Garden fireplace FAQs
Can I build a garden fireplace on decking?
No. Schiedel states the fireplaces must never be placed on timber decking and recommends a flat, minimum 100mm thick reinforced concrete base.
How close can it be to a fence or pergola?
Schiedel specifies a minimum clearance of 75mm from combustible materials for the 500, 950 and 1200 fireplaces.
Do I need planning permission?
For most homes Schiedel advises a garden fireplace falls under permitted development, subject to height, boundary and position limits. Listed buildings and designated areas are more restricted, so check with your council.
Can I make the chimney taller?
Yes, with additional chimney blocks. Schiedel advises against a freestanding chimney taller than 3 metres in total without a structural review.
Can I use it in a smoke control area?
Schiedel advises that unroofed outdoor fireplaces are broadly exempt from indoor chimney restrictions, but smoke that regularly causes a nuisance to neighbours can still lead to enforcement.
Need help choosing your garden fireplace?
Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.
Isokern is made by Schiedel; we are not the manufacturer.
