DM54

DM54 is the large Isokern chimney, for fires that need a 300mm or 345mm flue.

20  Products


Which DM54 parts do I need?

DM54 is the Isokern Double Module system with a 300mm or 345mm internal diameter inside a 545mm square, 300mm high outer casing. Schiedel lists it for Magnum firechests and larger appliances, inserts and open fires. Like all DM chimneys it is certified to EN 1858 (T450 N1 D 3 G(00)) and suits dry chimneys only, so not condensing, pellet or biomass appliances.

Inner block and outer casing, lip-glued. Do not mix it with DM36 or DM44. Load-bearing detail is in the installation brochure. Plan the stack on the DM calculator.

Square casing

545mm square, 300mm high.Weight: 40kg

View

Starter flue block, 300mm

420 x 420mm, 150mm high.Weight: 11kg

View

Starter flue block, 345mm

420 x 420mm, 150mm high.Weight: 11kg

View

Flue block, 300mm

420 x 420mm, 300mm high.Weight: 22kg

View

Flue block, 345mm

420 x 420mm, 300mm high.Weight: 22kg

View

Offset block, 300mm

86mm, 30°, 150mm high.Weight: 44kg

View

Offset block, 345mm

86mm, 30°, 150mm high.Weight: 40kg

View

Square support block, 300mm

545mm square, 100mm high.Weight: 30kg

View

Stainless steel adaptor

300mm i/d, 365mm o/d.

View

Corbel for brickwork

800mm square, 75mm high.Weight: 57kg

View

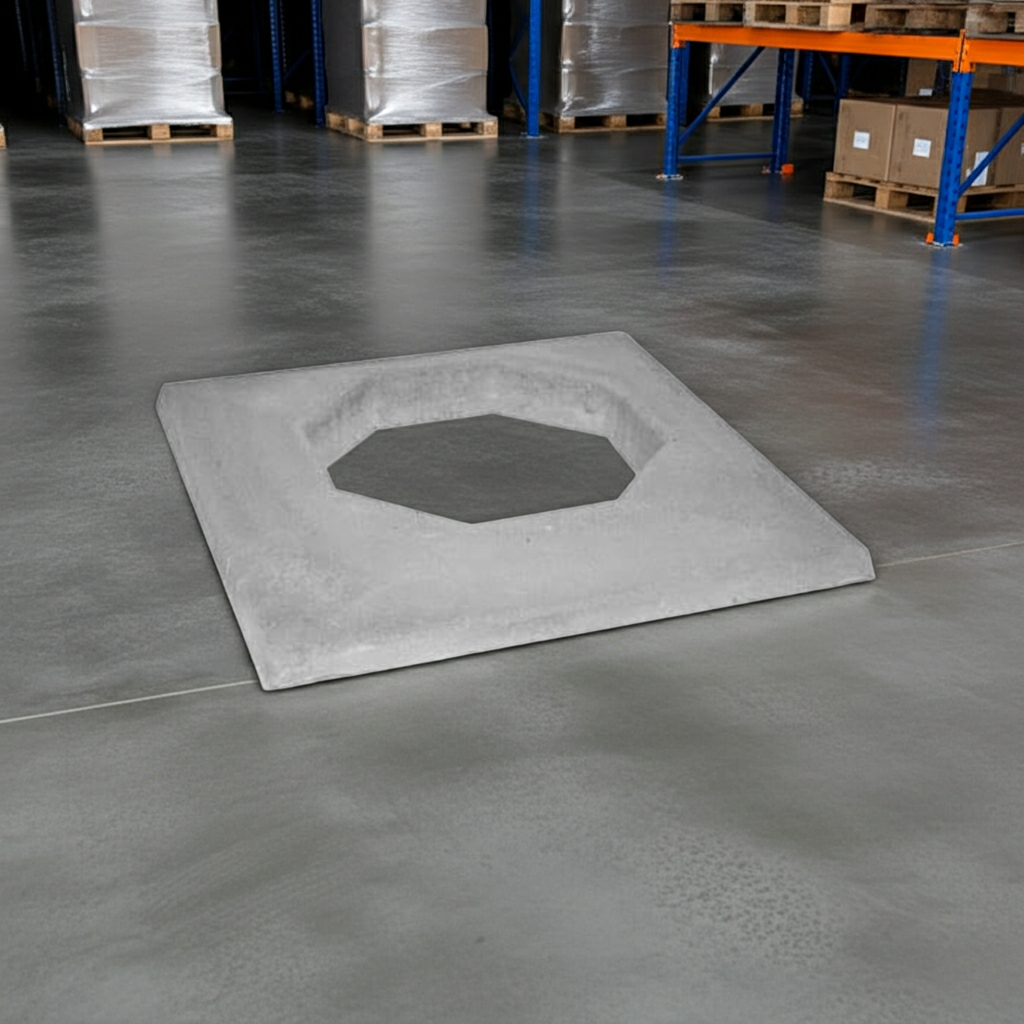

Capping for render

670mm square.Weight: 20kg

View

Capping for brickwork

950mm square.Weight: 46kg

View

Rain cap and top ring

Ventilated finish.

View

DM54 components

Dimensions and weights from the Schiedel Isokern brochure. Wall ties, reinforcement rods and the double soot door are shared across the DM range: stainless steel wall tie, 1m reinforcement rod and double soot door.

Connecting the appliance

  • Appliance below the chimney: the DM54 square support block sits on pre-stressed lintels or a cast-in-situ concrete slab, and a stainless steel adaptor connects the flue pipe, sealed with fibre rope. Schiedel recommends at least 600mm of flue pipe before the support block.
  • Open fire: Schiedel lists DM54, in 300mm or 345mm, for Magnum firechests; see the Magnum firechests.

Finishing above the roof

  • Render: render the casings above the roof with a two-part waterproof render (Schiedel recommends 1:2:5–6 cement:lime:sand undercoats and a 1:2:8–9 final coat, no coat over 15mm), then lip glue the 670mm square render capping onto the last casing and fit the ventilated rain cap and top ring.
  • Brick or stone: fit the 800mm square, 75mm high corbel just below the roof to carry the cladding, and finish with the 950mm square brickwork capping.
  • Chimney pot: set the pot at least 75mm into the capping and flaunch it 1:3; this always needs 38mm to combustibles.

Key installation points

  • Lay casings (rebate uppermost) and flue blocks (socket uppermost) together with staggered joints, starting with a starter flue block.
  • Seal every joint with lip glue: 2–3mm finished joints from 12–15mm beads, keeping the air gap clear.
  • Keep 38mm to combustibles, or zero on a straight rendered chimney with the ventilated top ring.
  • Tie external chimneys at maximum 1.5m intervals, and add reinforcement rods above 1.4m over the roof line.

For the full build sequence see the Double Module guide, and plan the blocks on the DM calculator.

DM54 parts FAQs

What sizes does DM54 come in?

Schiedel lists DM54 in 300mm and 345mm internal diameters. Both inner flue blocks fit the same 545mm outer casing.

Does DM54 suit a Magnum firechest?

Schiedel lists DM54, in 300mm and 345mm internal diameters, for Magnum firechests and larger appliances, inserts and open fires. Check the flue size against the firechest instructions.

How heavy are DM54 blocks?

The 545mm casing is about 40kg and each 300mm-high flue block about 22kg (Schiedel brochure), so plan handling and lifting on site.

How tall must the chimney be for an open fire?

Schiedel gives a minimum of 4.5m from the top of the fire opening.

Need help choosing your DM54 parts?

Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.

Isokern is made by Schiedel; we are not the manufacturer.
