225mm (9″) ID Pumice Liner Pack

The 225mm pack is a standard height of 9 inch pumice flue liner for an open fire.

13  Products


Which 225mm liner pack height do I need?

In the pack: rebated liners, lip glue, LECA for the minimum void, and a notice plate. No support block and no adaptor. Add LECA if the void is larger, and order bends separately.

The 225mm (9 inch) pack is put together by Isokernshop from genuine Schiedel Isokern components. The 225mm pack is the flue run: liners, lip glue, LECA and a chimney notice plate. The connection at the bottom of the chimney is chosen on the product page, so the same pack can serve a stove or an open fire.

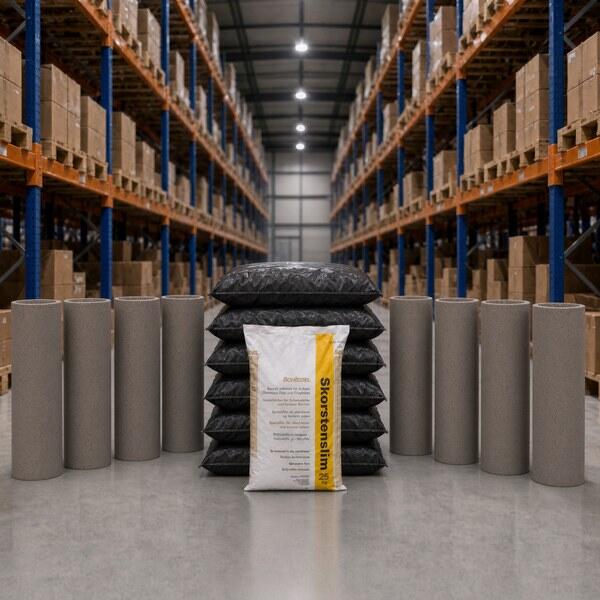

225mm 4.8m pack

4.8m, 8 225mm liners (600mm).LECA 50L bags: 6; Lip glue 5kg bags: 1

View

225mm 5.4m pack

5.4m, 9 225mm liners (600mm).LECA 50L bags: 7; Lip glue 5kg bags: 1

View

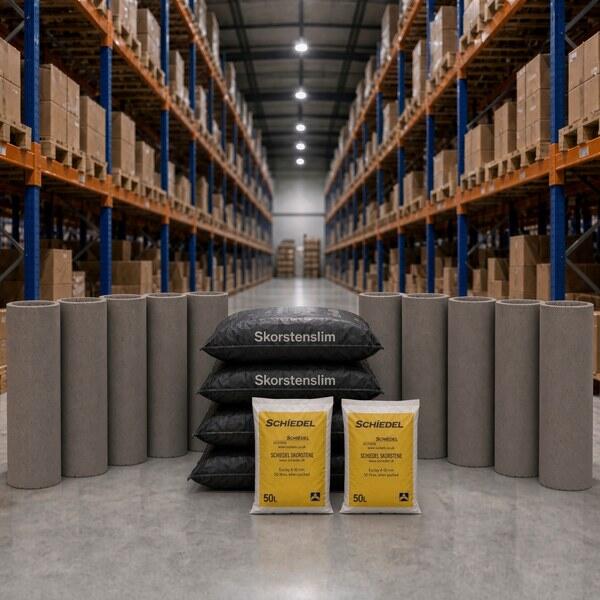

225mm 6.0m pack

6.0m, 10 225mm liners (600mm).LECA 50L bags: 8; Lip glue 5kg bags: 1

View

225mm 6.6m pack

6.6m, 11 225mm liners (600mm).LECA 50L bags: 8; Lip glue 5kg bags: 2

View

225mm 7.2m pack

7.2m, 12 225mm liners (600mm).LECA 50L bags: 9; Lip glue 5kg bags: 2

View

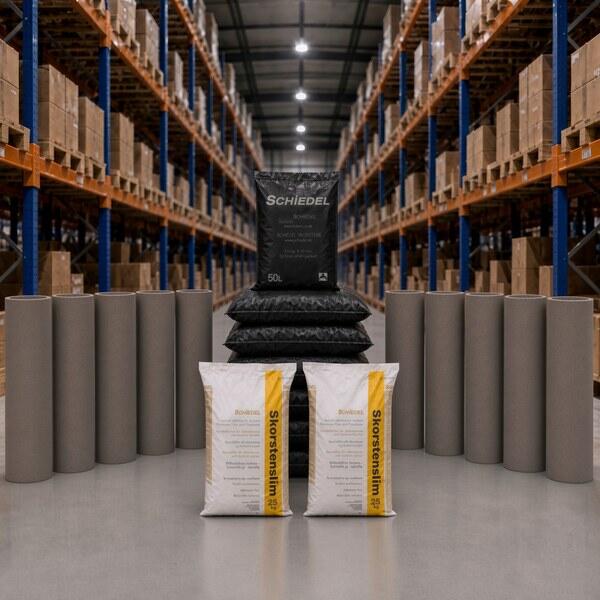

225mm 7.8m pack

7.8m, 13 225mm liners (600mm).LECA 50L bags: 10; Lip glue 5kg bags: 2

View

225mm 8.4m pack

8.4m, 14 225mm liners (600mm).LECA 50L bags: 10; Lip glue 5kg bags: 2

View

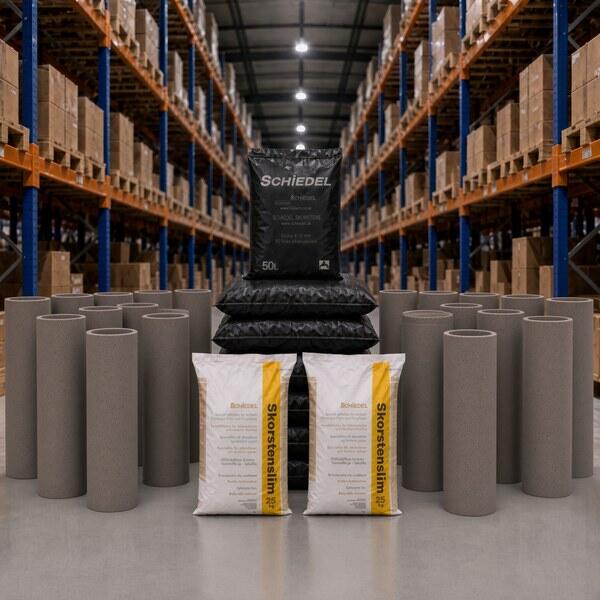

225mm 9.0m pack

9.0m, 15 225mm liners (600mm).LECA 50L bags: 11; Lip glue 5kg bags: 2

View

225mm packs compared by height

Chimney height225mm liners (600mm)LECA 50L bagsLip glue 5kg bagsShop
4.8m861225mm 4.8m pack
5.4m971225mm 5.4m pack
6.0m1081225mm 6.0m pack
6.6m1182225mm 6.6m pack
7.2m1292225mm 7.2m pack
7.8m13102225mm 7.8m pack
8.4m14102225mm 8.4m pack
9.0m15112225mm 9.0m pack

Heights rise in 0.6m steps, one 600mm liner at a time. The LECA allowance is based on an internal chimney void of 350mm x 350mm; a larger void needs more, so check with the liner calculator.

About the 225mm liner

Each Isokern 225mm liner has a 285mm outside diameter, is 600mm long and weighs about 14kg (Isokern price list). Schiedel certifies the liners to EN 1857 (T600 N2 D 3 G). They suit all fuel types, but not condensing appliances, and can be used for a new-build chimney or to reline an existing masonry chimney. The flue size is set by your appliance, so follow the appliance manufacturer's instructions and Approved Document J.

Parts for a 225mm chimney

PartWhat it is forShop
Liner support blockBase of the liner run at the appliance connectionView
Stainless steel adaptor 225mmConnects a stove pipe to the linerView
Increaser adaptor 200mm to 225mmFor a 200mm appliance outletView
C16 concrete gatherOpen-fire gather for 200mm and 225mm linersView
Pumice gather for 225mm linersPumice open-fire gatherView
15°, 30° and 45° bendsOffsets in the flue routeView
Steel collar 225mmRequired with lip glue on any cut jointView

Installation notes from Schiedel

  • Install the liners socket uppermost and seal every joint with lip glue, about 2mm thick, removing any excess so the flue stays smooth.
  • Surround the liners with at least 100mm of brick, block or stone, with a minimum 15mm of LECA between liner and masonry, mixed 20 parts to 1 part OPC cement.
  • Keep the route as straight as possible: up to two offsets (four bends) at no more than 45° from vertical, supported and backfilled with the LECA mix. Choose from the 15°, 30° and 45° 225mm bends; liners can be cut between bends, and a cut joint needs a steel collar as well as lip glue.
  • Keep combustible materials 200mm from the inner surface of the liner, or 40mm from the outside of the masonry.
  • Terminate the chimney at the correct height under Approved Document J, test it, and fix the completed notice plate in the dwelling. Leave it at least 72 hours before use, then light only small fires for the first week.

To finish the stack, choose a 225mm roll-top chimney pot in terracotta or buff (225mm x 300mm), terracotta or buff (225mm x 450mm), and add a top guard for 150–250mm flues in terracotta or buff if required. Schiedel's roll-top pots are made to BS EN 13502 and are freeze/thaw resistant. Alternatively, the stack can be finished by flaunching around the liner itself.

Need a different height? Single 225mm liners are sold separately. Compare every size on the pumice liner packs page, or read how Isokern pumice flue liners work.

225mm liner pack FAQs

What is included in the 225mm pack?

Rebated 225mm pumice liners, lip glue, LECA for the minimum void and a chimney notice plate. The connection parts are chosen separately. Quantities by height are in the table above.

My chimney is taller than 9.0m. What should I order?

Choose the 9.0m pack and add single 225mm liners, with extra lip glue and LECA as needed. Liners in this size are 600mm long.

Are bends included?

No. 225mm bends, steel collars and chimney pots are ordered separately. Schiedel allows up to two offsets (four bends) per chimney, at no more than 45° from vertical.

Do I need extra LECA?

The pack allowance is based on an internal chimney void of 350mm x 350mm. A larger void needs more LECA, so check with the liner calculator.

Which chimney pot fits a 225mm liner?

Choose a pot with a 225mm internal diameter. We list 225mm roll-top pots in terracotta and buff; see the chimney pots page for every size.

Need help choosing your 225mm liner pack?

Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.

Isokern is made by Schiedel; we are not the manufacturer.
