Double Module
The Double Module is a pumice chimney you build as you go: an inner flue block and an outer casing, lip-glued, then rendered or brick-clad.
Which Double Module system do I need?
Schiedel describes the Isokern DM (Double Module) block system as a high-quality system chimney. An inner pumice flue block sits inside an outer pumice casing with an air gap between them: the double wall keeps flue gases hot while limiting heat transfer to the casing, and separating the two layers allows for thermal movement, reducing the risk of cracking, leaking or staining. It can be built inside or outside the house, on masonry, timber-frame or steel-frame projects. Choose your system:

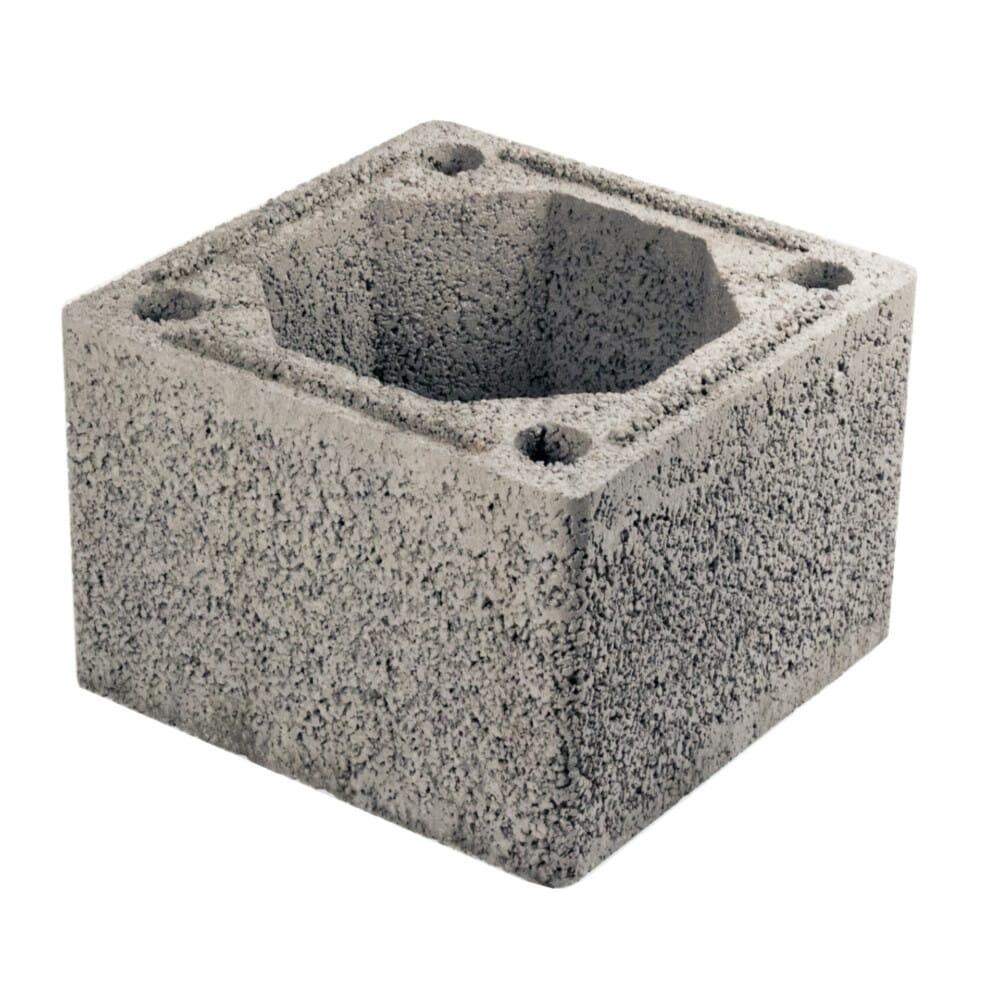

DM36
150mm ID; 360mm square casing, 250mm high.The 150mm stove system: smaller output inserts, stoves and solid fuel or oil cookers.
ViewDM44
180mm or 200mm ID; 440mm square casing, 300mm high.Inserts, stoves and small open fires; a 200mm outlet needs the 200mm block.
ViewDM54
300mm or 345mm ID; 545mm square casing, 300mm high.Magnum firechests and larger appliances, inserts and open fires.

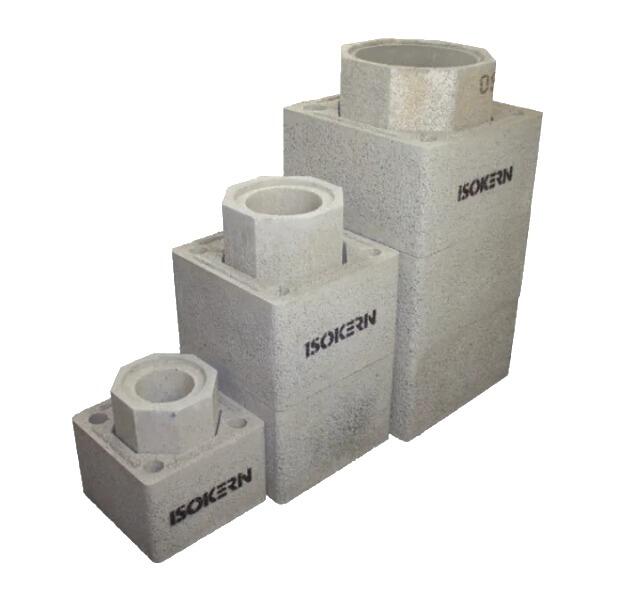

ViewDM36 chimney packs
150mm; standard heights of flue blocks, casings and starter parts.A standard-height 150mm stove chimney in one order.

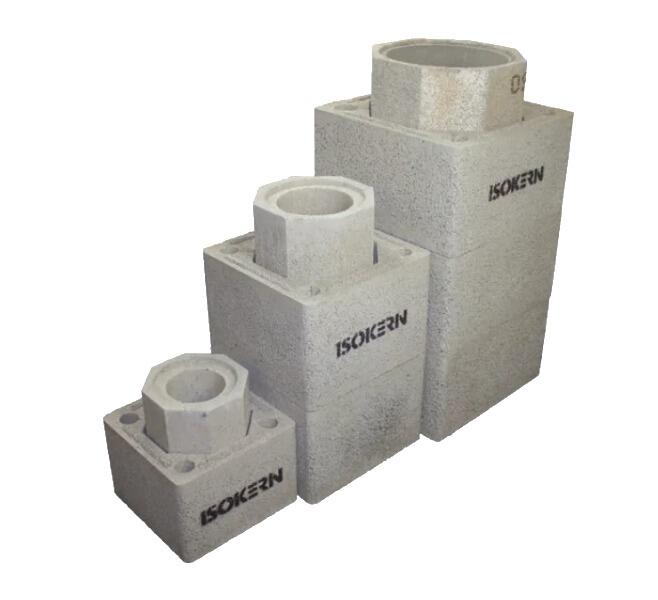

ViewDM44 chimney packs
180mm or 200mm; standard heights.A standard-height mid-size chimney; match the 200mm set to a 200mm outlet.
ViewDM54 chimney packs
300mm or 345mm; standard heights.A standard-height large chimney for a wide open fire.
ViewDo not mix casings between sizes. Plan the blocks for your height on the DM calculator.
DM systems compared
| System | Internal diameter | Outer casing | Schiedel use | Shop |
|---|---|---|---|---|
| DM36 | 150mm | 360mm square, 250mm high | Smaller output inserts, stoves and solid fuel or oil cookers | DM36 |
| DM44 | 180mm or 200mm | 440mm square, 300mm high | Inserts, stoves and small open fires | DM44 |
| DM54 | 300mm or 345mm | 545mm square, 300mm high | Magnum firechests and larger appliances, inserts and open fires | DM54 |
Schiedel certifies the DM system to EN 1858 with the designation T450 N1 D 3 G(00) (TÜV certificate 0036 CPR 90219 001). In DM44 and DM54 both inner flue sizes fit the same outer casing.
DM chimney or pumice liners?
| DM system chimney | Pumice liners | |
|---|---|---|
| Construction | Inner flue block and outer casing, built together | Liners built inside at least 100mm of brick, block or stone |
| Insulation | Air gap between flue and casing | Minimum 15mm LECA between liner and masonry |
| Distance to combustibles | Zero on a straight rendered chimney with the ventilated top ring; 38mm otherwise | 40mm from the outside of the masonry |
| Sizes | 150mm to 345mm | 150mm to 600mm in our range |
| Shop | This page | Pumice flue liners |
How to choose the right DM size
- The appliance decides. The flue size is set by the appliance manufacturer, and the pumice flue must not be smaller than the appliance spigot. Follow Approved Document J.
- Stoves: DM36 (150mm) is the stove system; DM44 covers 180mm and 200mm. A 200mm outlet only sits on a 200mm block with the matching adaptor.
- Open fires and firechests: DM44 suits small open fires; DM54 suits Magnum firechests and larger open fires.
- Height: Schiedel gives a minimum of 4.5m from the top of the fire opening for an open fire, with a draught calculation to EN 13384-1 for shorter flues. For an appliance, follow the manufacturer's instructions.
- Freestanding stacks: Schiedel limits the freestanding stack height to 4.5 times the narrowest horizontal dimension.
Building a DM chimney
In outline, from the Schiedel Double Module installation guide:
- Start from a suitable foundation and constructional hearth in accordance with the Building Regulations.
- Lay the outer casings and inner flue blocks at the same time, with staggered joints. Casings go rebate (raised lip) uppermost and flue blocks socket uppermost, with a starter flue block at the base.
- Use lip glue for every joint: finished joints of 2–3mm, applied in 12–15mm beads. Keep the air gap between flue block and casing clear.
- Build straight wherever possible. Offset blocks must be glued and fully supported, with a starter flue block above them to keep the joints staggered.
- For a stove in a recess, Schiedel recommends at least 600mm of stove flue pipe before the support block, which sits on lintels or a concrete slab. A stainless steel adaptor makes the connection, sealed with fibre rope. Where the flue pipe enters from the side, a soot door casing and access flue block go below the entry.
- Finish internal casings with plasterboard on dabs or plaster; the side facing the wall needs no finish.
External chimneys and the roof
- Tie external chimneys to the structure at maximum 1.5m intervals, and where the chimney leaves the roof, with two stainless steel wall ties in the casing joints.
- Reinforcement rods, grouted 1:3 into the casings, are required where the chimney stands more than 1.4m above the roof line (1.1m where wind speed exceeds 44m/s).
- Fit Code 4 lead flashing at roof level. Above the roof, render the casings or clad them in brick or stone on a corbel fitted just below the roof.
- Finish with the ventilated rain cap and top ring (zero distance to combustibles on straight rendered chimneys) or a chimney pot set at least 75mm into the capping and flaunched (38mm distance to combustibles).
After installation, test and check the chimney under Approved Document J and fix the completed notice plate in the dwelling. Leave it at least 72 hours before use, and sweep at least twice a year with a polypropylene brush, never steel.
Technical downloads
Double Module chimney FAQs
Which DM size do I need?
The appliance decides. DM36 is 150mm, DM44 is 180mm or 200mm, and DM54 is 300mm or 345mm. The flue must not be smaller than the appliance spigot; follow the appliance manufacturer and Approved Document J.
What is the difference between a DM chimney and pumice liners?
A DM chimney is a complete system: an inner flue block and an outer casing built together with an air gap. Pumice liners are built inside at least 100mm of brick, block or stone with LECA insulation between.
What is the distance to combustibles?
Schiedel allows zero distance on a straight rendered chimney with the ventilated top ring. In all other cases, including offset chimneys and chimney pot finishes, keep 38mm from the outside of the chimney.
Can a DM chimney be built outside?
Yes. External chimneys are tied to the structure at maximum 1.5m intervals, and need reinforcement rods where they stand more than 1.4m above the roof line.
Can a DM chimney be used in a timber-frame house?
Yes. Schiedel states the DM system can be built inside or outside the house, on masonry, timber-frame or steel-frame projects.
Can I use a DM chimney with a condensing appliance?
No. Schiedel states the pumice systems are suitable for wood, solid fuel, oil and gas, but not for condensing appliances.
How tall must the chimney be for an open fire?
Schiedel gives a minimum of 4.5m from the top of the fire opening. For an appliance, follow the manufacturer's instructions.
Should I buy a DM chimney pack or individual blocks?
A pack covers a standard chimney height with flue blocks, casings and the usual starter parts. Offsets, cappings, corbels and adaptors that are not in the pack are on the DM36, DM44 and DM54 categories.
Need help choosing your Double Module chimney?
Speak to our Isokern team on 0113 322 5187 or email [email protected]. Send us the appliance, the flue size and the stack height, and we will list the DM blocks you need.
Isokern is made by Schiedel; we are not the manufacturer.
