300mm (12″) ID Pumice Liner Pack
The 300mm pack is a 12 inch open-fire chimney. There is no adaptor and no support block in the pack.
Which 300mm liner pack height do I need?

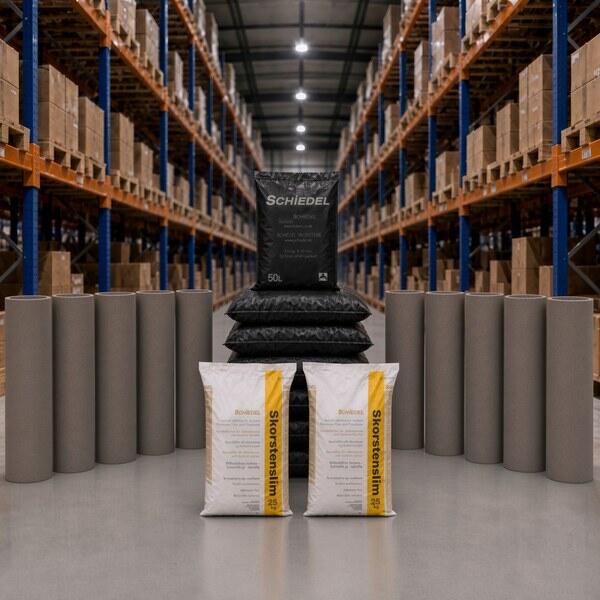

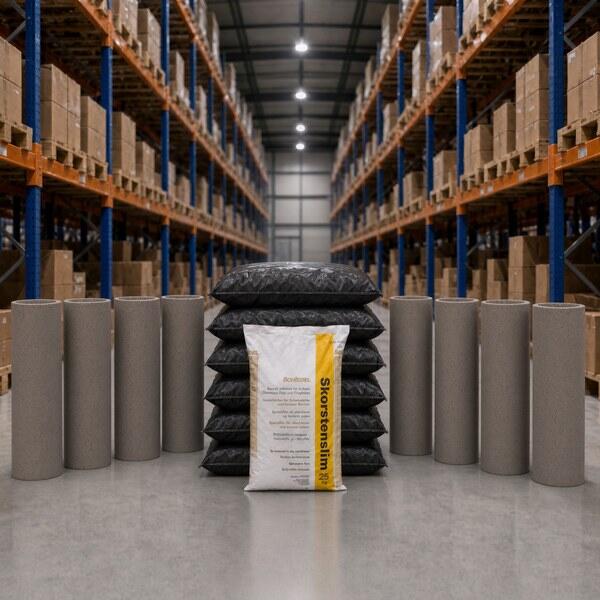

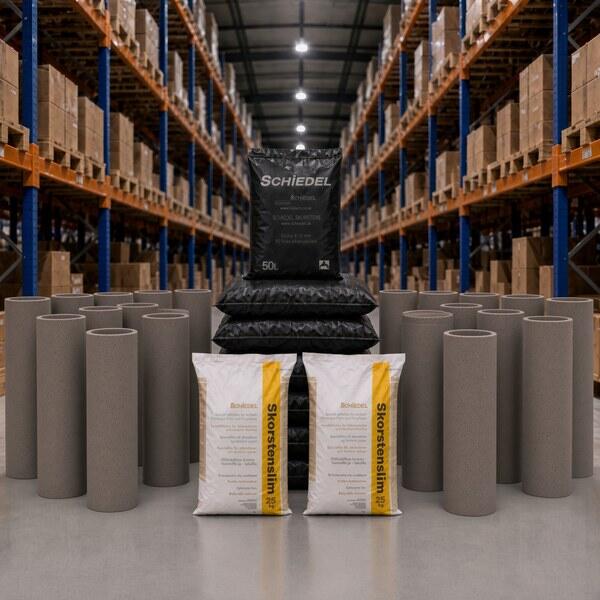

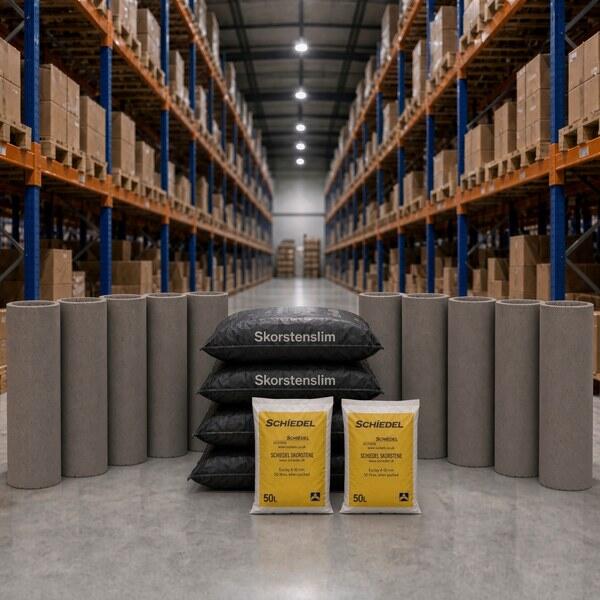

In the pack: rebated liners, lip glue, LECA for the minimum void, and a notice plate. Order extra LECA for a wider stack, and bends if the flue has to offset.
The 300mm (12 inch) pack is put together by Isokernshop from genuine Schiedel Isokern components. The 300mm pack is the flue run: liners, lip glue, LECA and a chimney notice plate. The connection at the bottom of the chimney is chosen on the product page, so the same pack can serve a stove or an open fire.
300mm packs compared by height
| Chimney height | 300mm liners (600mm) | LECA 50L bags | Lip glue 5kg bags | Shop |
|---|---|---|---|---|
| 4.8m | 8 | 6 | 1 | 300mm 4.8m pack |
| 5.4m | 9 | 7 | 1 | 300mm 5.4m pack |
| 6.0m | 10 | 7 | 2 | 300mm 6.0m pack |
| 6.6m | 11 | 8 | 2 | 300mm 6.6m pack |
| 7.2m | 12 | 9 | 2 | 300mm 7.2m pack |
| 7.8m | 13 | 10 | 2 | 300mm 7.8m pack |
| 8.4m | 14 | 10 | 2 | 300mm 8.4m pack |
| 9.0m | 15 | 11 | 2 | 300mm 9.0m pack |
Heights rise in 0.6m steps, one 600mm liner at a time. The LECA allowance is based on an internal chimney void of 400mm x 400mm; a larger void needs more, so check with the liner calculator.
About the 300mm liner
Each Isokern 300mm liner has a 360mm outside diameter, is 600mm long and weighs about 19kg (Isokern price list). Schiedel certifies the liners to EN 1857 (T600 N2 D 3 G). They suit all fuel types, but not condensing appliances, and can be used for a new-build chimney or to reline an existing masonry chimney. The flue size is set by your appliance, so follow the appliance manufacturer's instructions and Approved Document J.
Parts for a 300mm chimney
| Part | What it is for | Shop |
|---|---|---|
| Liner support block | Base of the liner run at the appliance connection | View |
| Stainless steel adaptor 300mm | Connects a flue pipe to the liner | View |
| C18 concrete gather | Open-fire gather for 300mm liners | View |

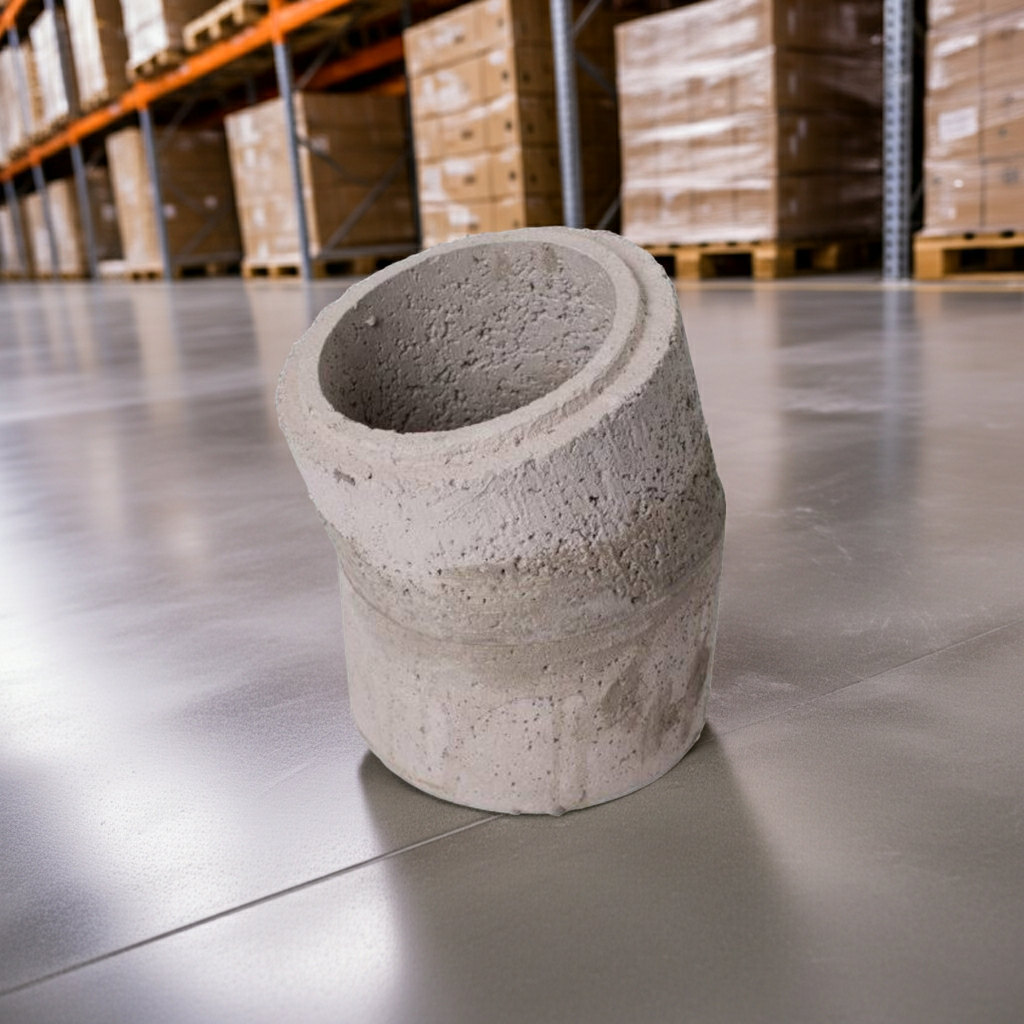

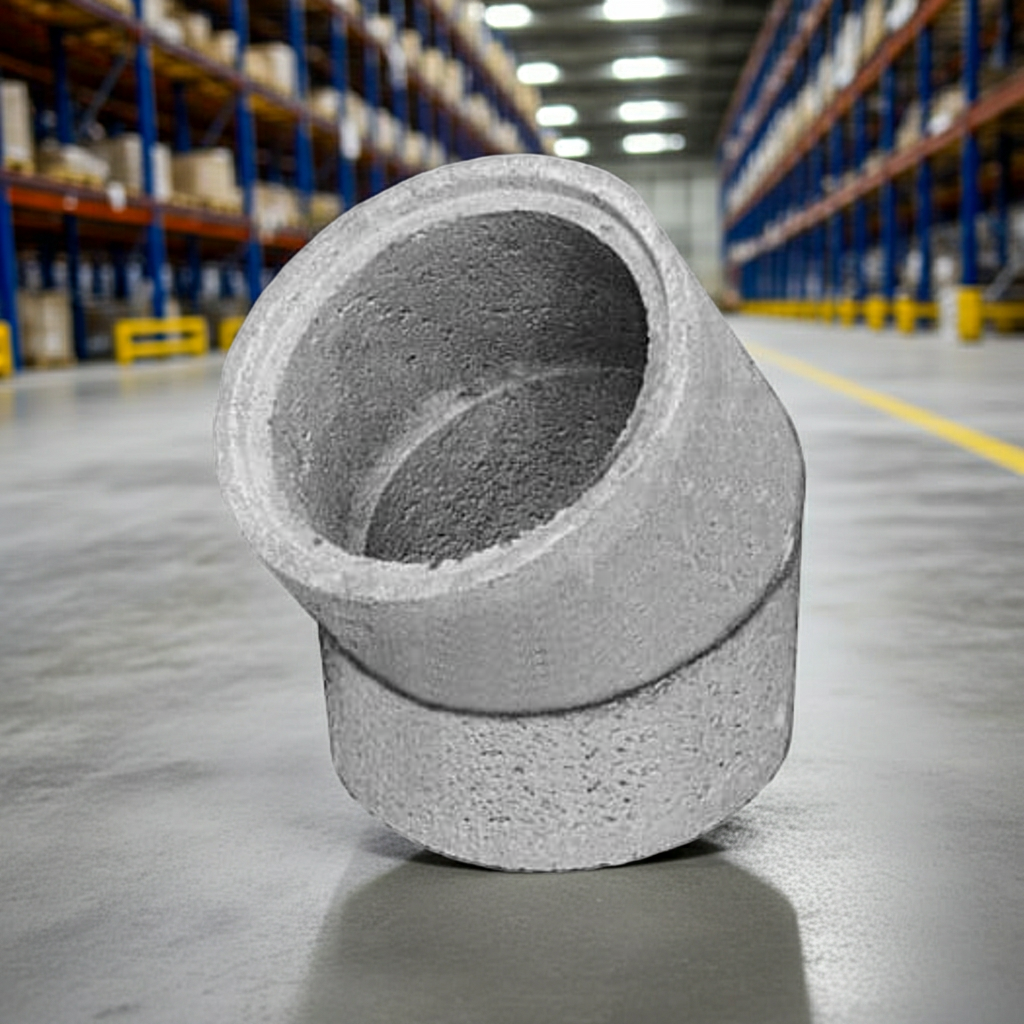

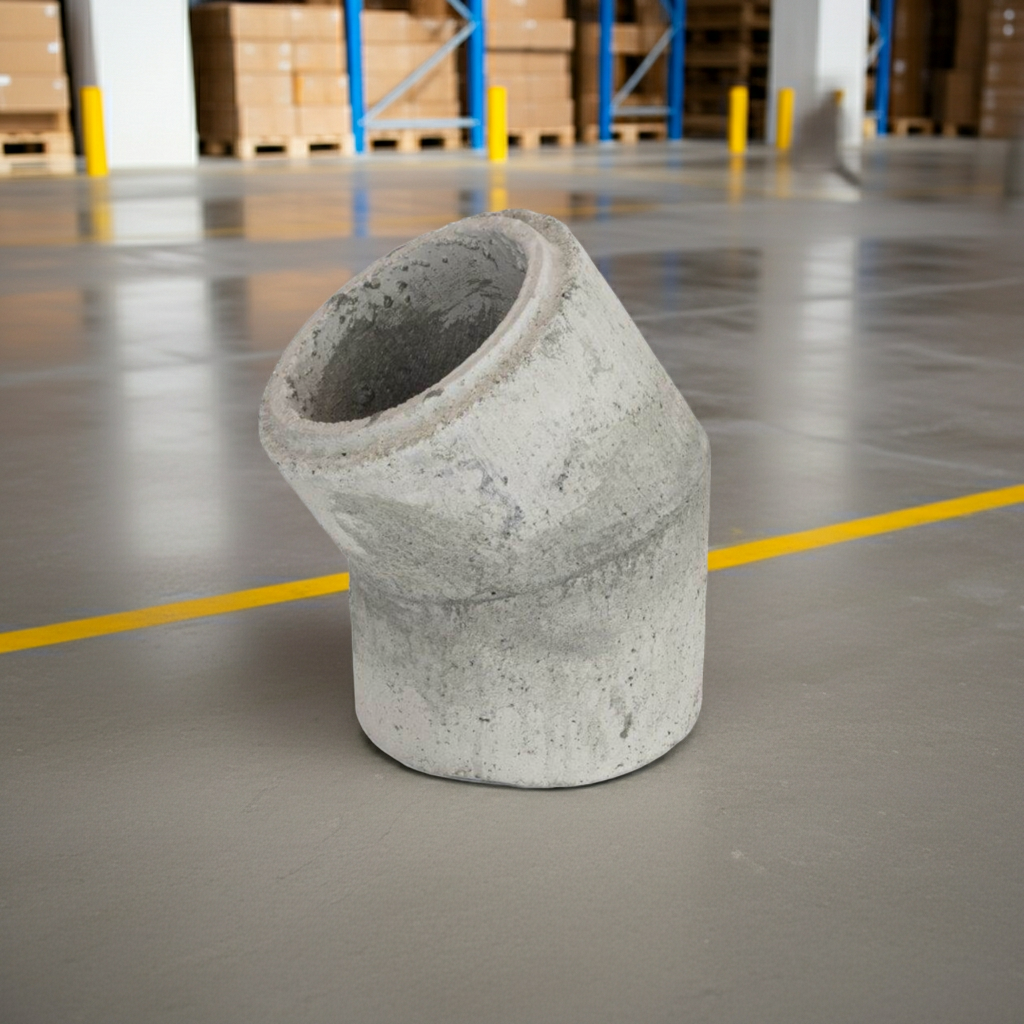

| 15°, 30° and 45° bends | Offsets in the flue route | View |
| Steel collar 300mm | Required with lip glue on any cut joint | View |
Installation notes from Schiedel
- Install the liners socket uppermost and seal every joint with lip glue, about 2mm thick, removing any excess so the flue stays smooth.
- Surround the liners with at least 100mm of brick, block or stone, with a minimum 15mm of LECA between liner and masonry, mixed 20 parts to 1 part OPC cement.
- Keep the route as straight as possible: up to two offsets (four bends) at no more than 45° from vertical, supported and backfilled with the LECA mix. Choose from the 15°, 30° and 45° 300mm bends; liners can be cut between bends, and a cut joint needs a steel collar as well as lip glue.
- Keep combustible materials 200mm from the inner surface of the liner, or 40mm from the outside of the masonry.
- Terminate the chimney at the correct height under Approved Document J, test it, and fix the completed notice plate in the dwelling. Leave it at least 72 hours before use, then light only small fires for the first week.
To finish the stack, choose a 300mm roll-top chimney pot in terracotta or buff (300mm x 450mm), and add a top guard for 300mm flues in terracotta or buff if required. Schiedel's roll-top pots are made to BS EN 13502 and are freeze/thaw resistant. Alternatively, the stack can be finished by flaunching around the liner itself.
Need a different height? Single 300mm liners are sold separately. Compare every size on the pumice liner packs page, or read how Isokern pumice flue liners work.
300mm liner pack FAQs
What is included in the 300mm pack?
Rebated 300mm pumice liners, lip glue, LECA for the minimum void and a chimney notice plate. The connection parts are chosen separately. Quantities by height are in the table above.
My chimney is taller than 9.0m. What should I order?
Choose the 9.0m pack and add single 300mm liners, with extra lip glue and LECA as needed. Liners in this size are 600mm long.
Are bends included?
No. 300mm bends, steel collars and chimney pots are ordered separately. Schiedel allows up to two offsets (four bends) per chimney, at no more than 45° from vertical.
Do I need extra LECA?
The pack allowance is based on an internal chimney void of 400mm x 400mm. A larger void needs more LECA, so check with the liner calculator.
Which chimney pot fits a 300mm liner?
Choose a pot with a 300mm internal diameter. We list 300mm roll-top pots in terracotta and buff; see the chimney pots page for every size.
Need help choosing your 300mm liner pack?
Speak to our Isokern team on 0113 322 5187 or email [email protected]. We can check sizes, flue requirements and what to order.
Isokern is made by Schiedel; we are not the manufacturer.
