Isokern Magnum Firechest 1100 including Lip Glue - Isokern

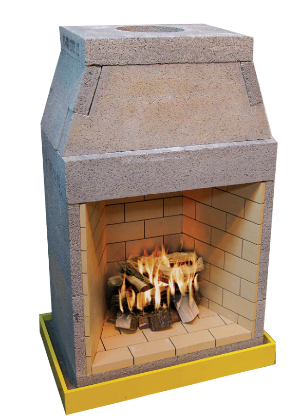

Isokern Magnum 1100 firechest pumice chamber, front view
Isokern Magnum Firechest 1100 including Lip Glue
Isokern

The Isokern Magnum Firechest 1100 is a large pumice chamber for generous open solid-fuel fires, for open fires and flued appliances. The kit includes 6 bags of lip glue for assembly.

The firechest is load-bearing up to 2,600kg and tested to EN 13229. Pumice gives high insulation, a quick heat-up, a slow cool-down, easy installation and a long life.

  • Fire opening: 1130mm W x 960mm H
  • Flue: 350mm i/d DM54 system or flue liners
  • Load-bearing: up to 2,600kg
  • Compliance: tested to EN 13229
  • Kit includes: 6 bags of lip glue
  • Optional: 40 x 25mm and 44 .....Read more

The Isokern Magnum Firechest 1100 is a large pumice chamber for generous open solid-fuel fires, for open fires and flued appliances. The kit includes 6 bags of lip glue for assembly.

The firechest is load-bearing up to 2,600kg and tested to EN 13229. Pumice gives high insulation, a quick heat-up, a slow cool-down, easy installation and a long life.

  • Fire opening: 1130mm W x 960mm H
  • Flue: 350mm i/d DM54 system or flue liners
  • Load-bearing: up to 2,600kg
  • Compliance: tested to EN 13229
  • Kit includes: 6 bags of lip glue
  • Optional: 40 x 25mm and 44 x 50mm firebricks, which need 2 tubs of firebrick grout (sold separately)

Magnum 1100 dimensionsMagnum 1100 dimensions PDF

Magnum 1100 firechest guide

The Magnum 1100 is one of the three larger models, sharing a 960mm opening height and 710mm depth. Like every Magnum it is a flat-packed Schiedel Isokern pumice fire chamber, tested to EN 13229 and load-bearing to 2,600kg of chimney above.

Magnum 1100 specification

Magnum 1100
Fire opening (W x H)1130 x 960mm
External size (W x H x D)1230 x 1761 x 710mm
Weight790kg
Inside flue diameter350mm
Free air required338cm² (33,800mm²)
Minimum flue height4.5m above the fire opening

Figures from the Schiedel Isokern brochure and Magnum Firechest installation instructions.

The flue

Schiedel gives a 350mm inside flue diameter for the Magnum 1100; see the 350mm pumice liners. Schiedel also lists the DM54 system chimney, in 300mm or 345mm, for Magnum firechests. Keep the chimney as straight as possible and at least 4.5m tall above the fire opening. Provide the 338cm² of free air through air bricks in the walls, floor or ceiling, not into the fire opening.

Installation notes from Schiedel

  • Bed the base slabs on mortar on a suitable foundation and constructional hearth, checking they are plumb and level.
  • Assemble the elements with lip glue, applied with the application bag in 20–25mm beads for finished joints of 2–3mm. Wipe away any excess.
  • The firechest can be built against a wall but must not be glued to it.
  • Fit the damper loose: no mortar or lip glue. Its weight holds it in place and leaves room for expansion.
  • Build 100mm of brick or blockwork around both sides and behind the firechest. The front can be finished with plasterboard on dabs or render on mesh.
  • Line the chamber with firebrick slips, 50mm thick on the back and base and 25mm thick on the sides. Glue them with firebrick mortar (now supplied as Isokern firebrick grout) and point them in; lay the base bricks loose and glue only the front row.

Timber can sit against the surrounding 100mm of masonry; keep 40mm between the front face of the gather and timber. The damper must be opened before lighting and must not be installed with gas fires.

Frequently asked questions

What flue size does the Magnum 1100 need?

Schiedel gives a 350mm inside flue diameter, with a minimum flue height of 4.5m above the fire opening.

How much combustion air does the Magnum 1100 need?

338cm² (33,800mm²) of free air, supplied through air bricks rather than into the fire opening.

How heavy is the Magnum 1100?

About 790kg (Schiedel brochure), so check the foundation and constructional hearth suit the load.

Compare every size on the Magnum firechests page. Isokern is made by Schiedel; we are not the manufacturer.

Read less

SKU 129568
£1,785.22 Inc VAT
£1,487.68 ex VAT
