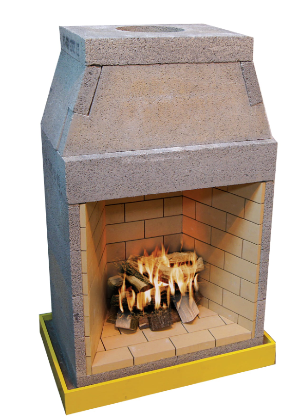

The Isokern Magnum Firechest 500 is a compact pumice chamber for small open solid-fuel fires. This kit includes 2 bags of lip glue, buff firebricks and firebrick grout for full assembly.
The flue can be either a liner or a DM 200mm internal diameter, depending on how the rest of the stack is built: see Double Module or pumice liners.
The firechest is load-bearing up to 2,600kg and tested to EN 13229. Pumice gives high insulation, a quick heat-up, a slow cool-down, light handling and a long life.
- Fire opening: 510mm W x 540mm H
- Flue: liner or DM, 200m
.....Read more
The Isokern Magnum Firechest 500 is a compact pumice chamber for small open solid-fuel fires. This kit includes 2 bags of lip glue, buff firebricks and firebrick grout for full assembly.
The flue can be either a liner or a DM 200mm internal diameter, depending on how the rest of the stack is built: see Double Module or pumice liners.
The firechest is load-bearing up to 2,600kg and tested to EN 13229. Pumice gives high insulation, a quick heat-up, a slow cool-down, light handling and a long life.
- Fire opening: 510mm W x 540mm H
- Flue: liner or DM, 200mm i/d
- Load-bearing: up to 2,600kg
- Compliance: tested to EN 13229
- Kit includes: 2 bags of lip glue, buff firebricks for the chamber and firebrick grout
Magnum 500 dimensions
Magnum 500 firechest guide
The Magnum 500 is the compact model, at 440mm deep and 685mm wide. Like every Magnum it is a flat-packed Schiedel Isokern pumice fire chamber, tested to EN 13229 and load-bearing to 2,600kg of chimney above.
Magnum 500 specification
| Magnum 500 |
|---|
| Fire opening (W x H) | 510 x 540mm |
| External size (W x H x D) | 685 x 1540 x 440mm |
| Weight | 390kg |
| Inside flue diameter | 200mm |
| Free air required | 200cm² (20,000mm²) |
| Minimum flue height | 4.5m above the fire opening |
Figures from the Schiedel Isokern brochure and Magnum Firechest installation instructions.
The flue
Schiedel gives a 200mm inside flue diameter for the Magnum 500; see the 200mm pumice liners. Keep the chimney as straight as possible and at least 4.5m tall above the fire opening. Provide the 200cm² of free air through air bricks in the walls, floor or ceiling, not into the fire opening.
Installation notes from Schiedel
- Bed the base slabs on mortar on a suitable foundation and constructional hearth, checking they are plumb and level.
- Assemble the elements with lip glue, applied with the application bag in 20–25mm beads for finished joints of 2–3mm. Wipe away any excess.
- The firechest can be built against a wall but must not be glued to it.
- Fit the damper loose: no mortar or lip glue. Its weight holds it in place and leaves room for expansion.
- Build 100mm of brick or blockwork around both sides and behind the firechest. The front can be finished with plasterboard on dabs or render on mesh.
- Line the chamber with firebrick slips, 50mm thick on the back and base and 25mm thick on the sides. Glue them with firebrick mortar (now supplied as Isokern firebrick grout) and point them in; lay the base bricks loose and glue only the front row.
Timber can sit against the surrounding 100mm of masonry; keep 40mm between the front face of the gather and timber. The damper must be opened before lighting and must not be installed with gas fires.
Frequently asked questions
What flue size does the Magnum 500 need?
Schiedel gives a 200mm inside flue diameter, with a minimum flue height of 4.5m above the fire opening.
How much combustion air does the Magnum 500 need?
200cm² (20,000mm²) of free air, supplied through air bricks rather than into the fire opening.
How heavy is the Magnum 500?
About 390kg (Schiedel brochure), so check the foundation and constructional hearth suit the load.
Compare every size on the Magnum firechests page. Isokern is made by Schiedel; we are not the manufacturer.
